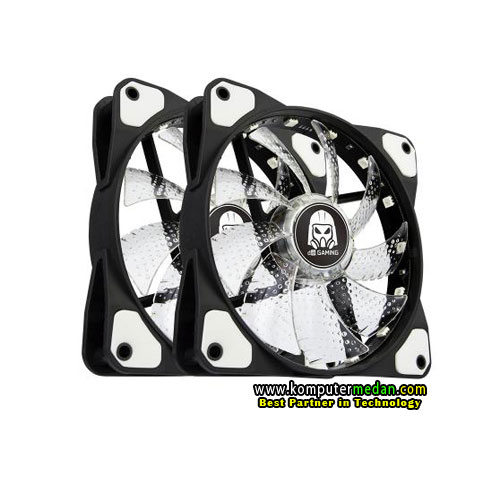

DA ORKAAN RGB
SPECIFICATION
FAN
Model : Orkaan RGB
Color : White
Input Power : 2.4W
Dimension : 120 x 120 x 25 mm
Weight : 120g
Voltage : 12V
Current : 0.2A
Fan Speed : 1300±10% RPM
Air Flow : 41.4 CFM ±10%
Air Pressure : 1.21mm H2O
Bearing Type : Hydraulic
Noise Level : 21dB(A)
Connectors : 3 pin (2510) + 4 pin (2.54)
LED Input Power : 0.4 – 1.5W
LED Current : 0.043 – 1.5A
LED STRIPS
Chip : 5050
Strip Length : 300mm
Extended Cable Length : 500mm
LED Light Quantity : 18 pcs
LED Rated Power : 90mW
LED Peak Current : 100mA
LED Rated Voltage : DC 12V
Working Temperature : -20 ~ +60 °C
Storage Temperature : -35 ~ +80 °C
REMOTE
Working Temperature : -20 – 60 °C
Voltage Supply : DC 12V
Output Channels : 4
Connecting Mode : Common Anode
Dimension (L x W x H) : 85 x 50 x 6 mm
N.W : 50g
G.W : 71g
Static Power Consumption : < 1W
Output Current : < 2A (Every Channel)
Output Power : < 72W
WHAT’S INSIDE !
Fan : x2
LED Strips : x2
Remote Control : x1
Sata Power Connection : x1
IR Controller : x1
|
