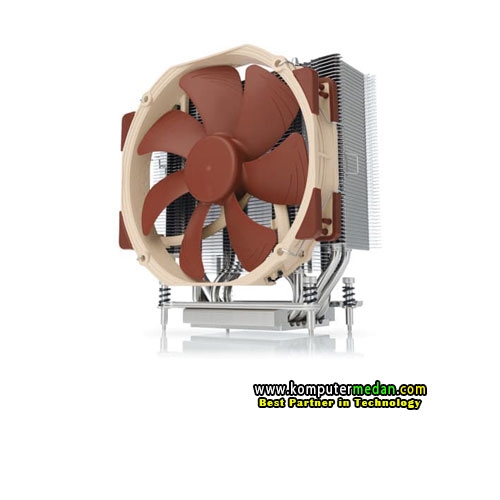

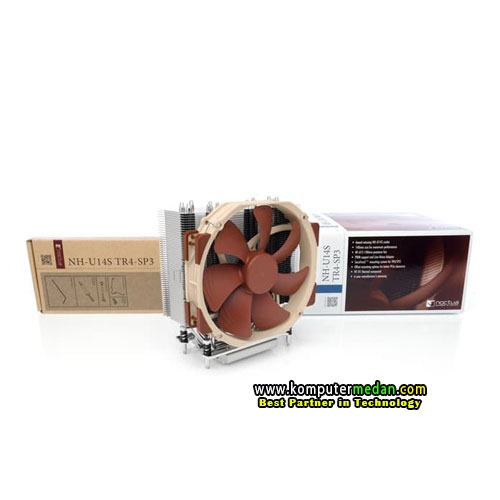

Noctua NH-U14S - Premium CPU Cooler with NF-A15 140mm Fan
TECH SPEC:
Socket compatibility : Intel LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required)

Height (without fan) 165 mm
Width (without fan) 150 mm
Depth (without fan) 52 mm
Height (with fan) 165 mm
Width (with fan) 150 mm
Depth (with fan) 78 mm
Weight (without fan) 770 g
Weight (with fan) 935 g

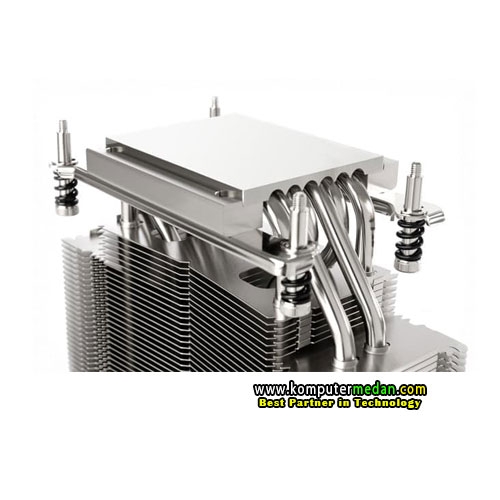

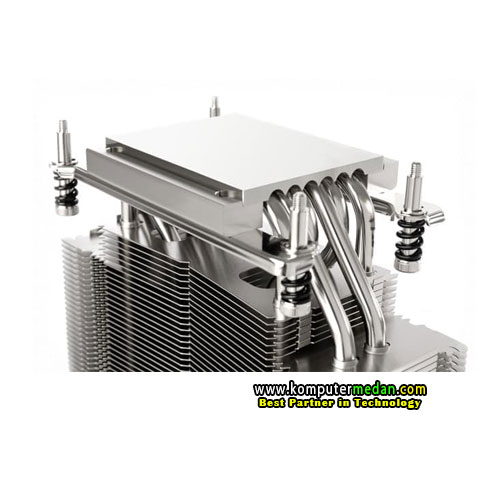

Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP see TDP guide
Fan compatibility 140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25



FAN SPEC:
Model Noctua NF-A15 PWM
Bearing SSO2
Max. Rotational Speed (+/- 10%) 1500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%) 1200 RPM
Min. Rotational Speed (PWM, +/-20%) 300 RPM
Max. Airflow 140,2 m/h
Max. Airflow with L.N.A. 115,5 m/h
Max. Acoustical Noise 24,6 dB(A)
Max. Acoustical Noise with L.N.A. 19,2 dB(A)
Input Power 1,56 W
Voltage Range 12 V
MTBF > 150.000 h


INSIDE THE BOX:

• NF-A15 PWM premium fan
• Low-Noise Adaptor (L.N.A.)
• NT-H1 high-grade thermal compound

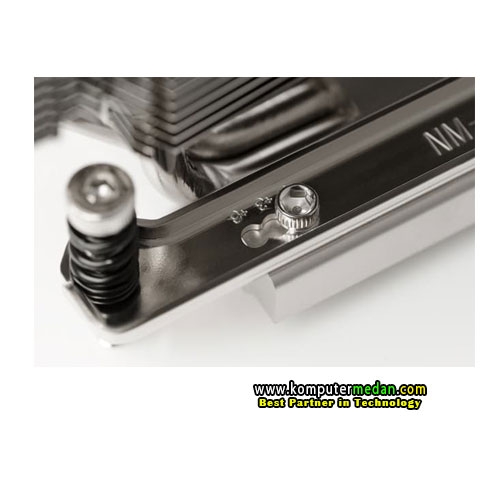

• SecuFirm2 Mounting Kit
• Anti-vibration pads and fan-clips for second NF-A15 (optional)
• Noctua Metal Case-Badge
