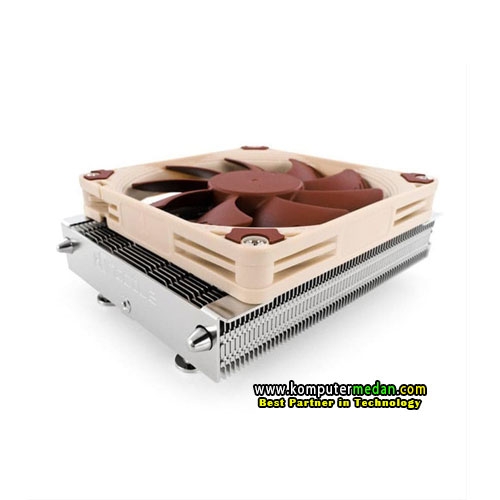

FEATURES
New revision for Ryzen’s AM4 socket
37mm low profile
100% RAM compatibility
100% compatibility with PCIe cards on mini-ITX
Easy access to near-socket connectors
NF-A9x14 PWM premium fan
Low-Noise Adaptor
Custom-designed SecuFirm2™ mounting for AMD
NT-H1 thermal compound

TECH SPECS
Cooler Specifications
Socket compatibility: AMD AM4
Height (without fan): 23 mm
Width (without fan): 114 mm
Depth (without fan): 92 mm
Height (with fan): 37 mm
Width (with fan): 114 mm
Depth (with fan): 95 mm
Weight (without fan): 390 g
Weight (with fan/s): 465 g
Material: Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDP: see TDP guide
Fan compatibility: 92x92x14mm, 92x92x25mm

FAN Specification
Model: Noctua NF-A9x14 PWM
Bearing: SSO2
Max. Rotational Speed (+/- 10%): 2500 RPM
Max. Rotational Speed with L.N.A. (+/- 10%): 1800 RPM
Min. Rotational Speed (PWM, +/-20%): 600 RPM
Min. Rotational Speed (PWM, +/-20%): 600 RPM
Max. Airflow: 57,5 m³/h
Max. Airflow with L.N.A.: 40,8 m³/h
Max. Acoustical Noise: 22,6 dB(A)
Max. Acoustical Noise with L.N.A.: 18,6 / 13,1 dB(A)
Input Power: 2,52 W
Voltage Range: 12 V
MTBF: > 150.000 h

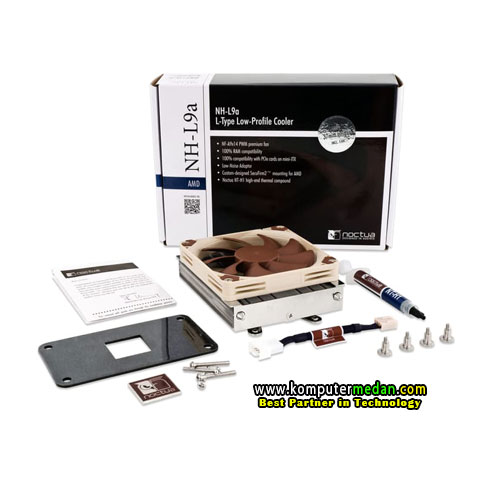

Scope of Delivery
NF-A9x14 PWM premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
SecuFirm2™ AM4 mounting kit
Screws for 92x92x25mm fans
Noctua metal case-badge
