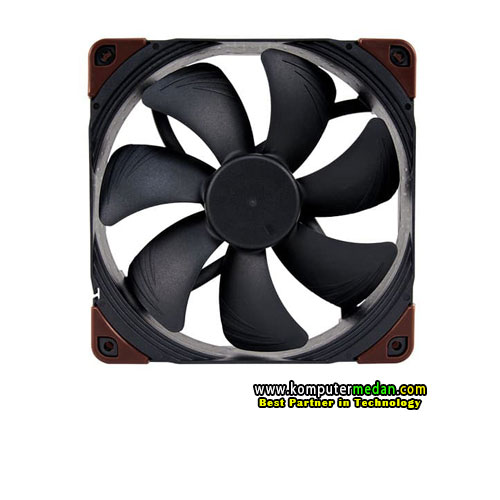

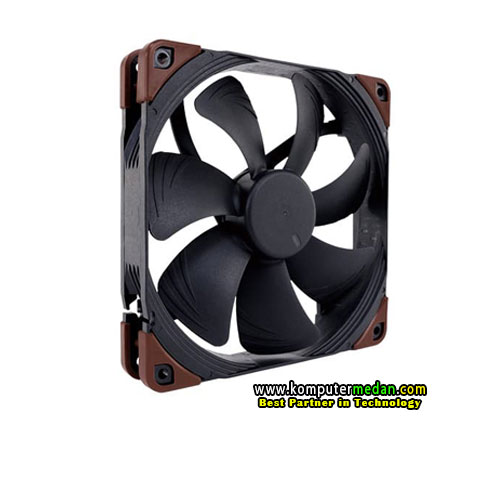

Specifications:
Size: 140x140x25 mm
Connector: 4-pin PWM
Bearing: SSO2
Blade Geometry: A series with Flow Acceleration Channels
Frame Technology: AAO
Rotational Speed (+/- 10%): 3000 RPM
Min. Rotational Speed (PWM, +/-20%): 800 RPM
Airflow: 269,3 m/h
Acoustical Noise: 41,3 dB(A)
Static Pressure: 10,52 mm H2O
Max. Input Power: 6,6 W
Max. Input Current: 0,55 A
Voltage: 12 V
MTBF: > 150.000 h
Scope of Delivery:
-Fan
-4 Fan Screws
Ingress Protection: IP52
Material: Fibre-glass reinforced polyamide
Motor type: Three-phase
|
