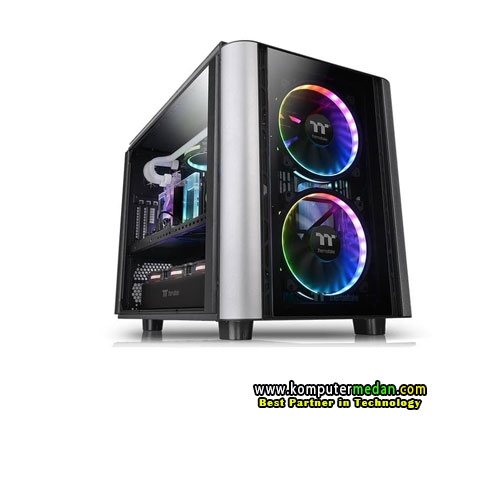

Model : Level 20 XT
Case Type : E-ATX Cube Case
Dimension (H x W x D) : 515 x 394 x 623 mm (20.3 x 15.5 x 24.5 inch)
Net Weight : 20.4 kg / 44.97 lb
Side Panel : 4mm Tempered Glass x 4(Left & Right & Front & Top)
Color : Exterior & Interior : Black
Material : SPCC
Cooling System :
Rear (exhaust) :
140 x 140 x 25 mm fan (1000rpm, 16dBA)
Drive Bays :
-Accessible 6 x 3.5’’ or 2.5’’ (HDD Cage)
-Hidden 1 x 3.5’’, 2 x 2.5’’ (M/B Tray)
Expansion Slots : 8
Motherboards : 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX)
I/O Port : USB 2.0 x2, USB 3.0 x2, HD Audio x 1, Type-C x1
PSU : Standard PS2 PSU (optional)
Fan Support :
Front:
3 x 120mm, 2 x 140mm, 2 x 200mm
Top:
8 x 120mm, 6 x 140mm, 2 x 200mm
Rear:
2 x 120mm or 2 x 140mm
Bottom:
3 x 120mm
Left / Right Side:
4 x 120mm, 3 x 140mm
Radiator Support :
Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm or 2 x 480mm
2 x 140mm or 2 x 280mm or 2 x 420mm
Rear:
1 x 120mm or or 1 x 140mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Bottom:
1 x 120mm or 1 x 240mm or 1 x 360mm or 1 x 480mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Clearance :
CPU cooler height limitation:
250mm
VGA length limitation:
400mm(with ODD cage)
590mm(without ODD cage)
PSU length limitation:
220mm (With Bottom Fan)

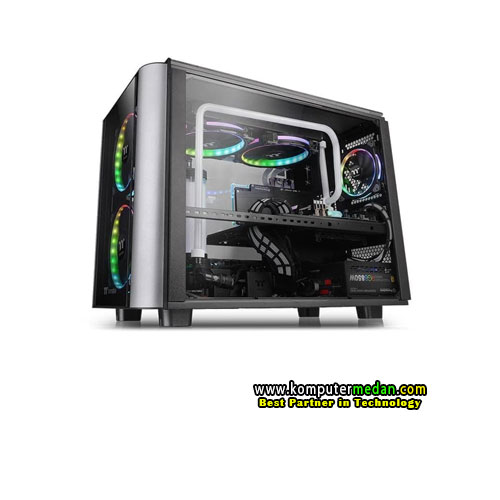

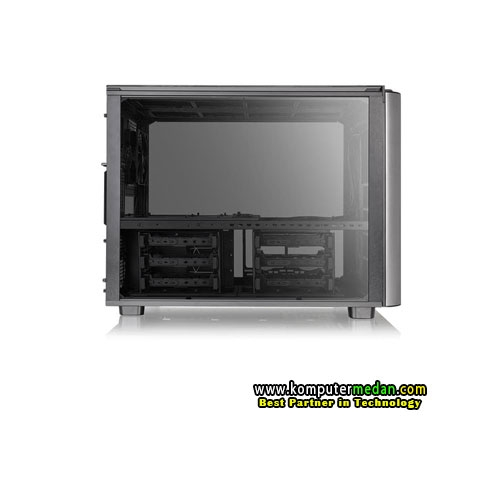

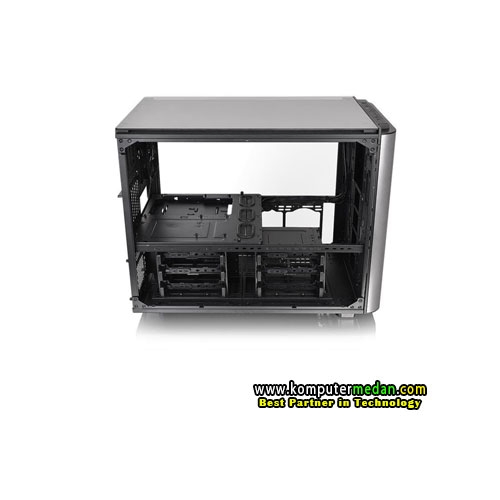

Chamber Design
The Level 20 XT carries over the innovations of some of our earlier cube case designs by splitting the chassis into two chambers. The chamber houses the motherboard tray GPU and other PCI-E cards, while the lower chamber houses the power supply, storage devices and cooling elements.
