SPESIFIKASI:
WIRELESS
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4 - 2.4835GHz
WiFi Speeds
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
• 270M: -70dBm@10% PER • 11M: -87dBm@10% PER
• 130M: -72dBm@10% PER • 6 M: -92dBm@10% PER
• 54M: -74dBm@10% PER • 1 M: -94dBm@10% PER
Transmission Power
<20dBm
Wireless Security
WPA-PSK/WPA2-PSK
Wireless Functions
WDS bridge
SOFTWARE
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Parental Control
Access control
Local management
Remote management
DHCP
Server
Port Forwarding
Virtual server, UPnP, DMZ
Dynamic DNS
DynDNS、NO-IP
Firewall Security
IP and MAC address binding
Protocols
IPv4
Guest Network
2.4GHz guest network
HARDWARE
Dimensions
147 mm × 115 mm × 34 mm

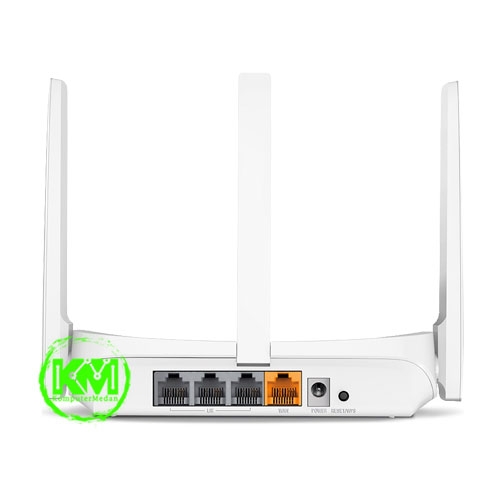

Interfaces
3 10/100Mbps LAN ports
1 10/100Mbps WAN port
Button
Reset/WPS button
External Power Supply
5VDC/0.6A
Antenna Type
3 x 5dBi fixed omni directional antennas
OTHERS
Certifications CE, ROHS
Package Contents

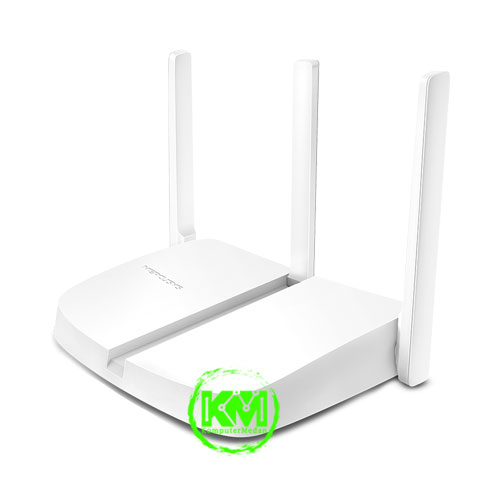

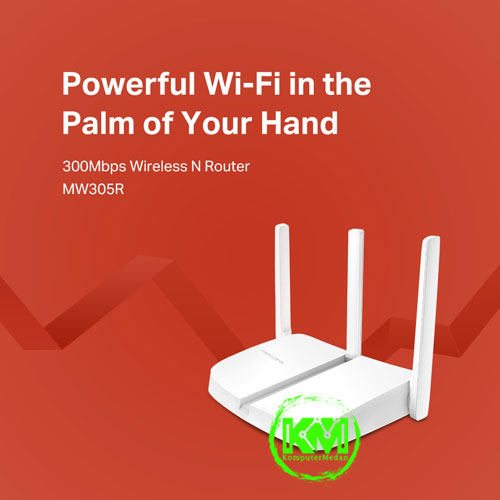

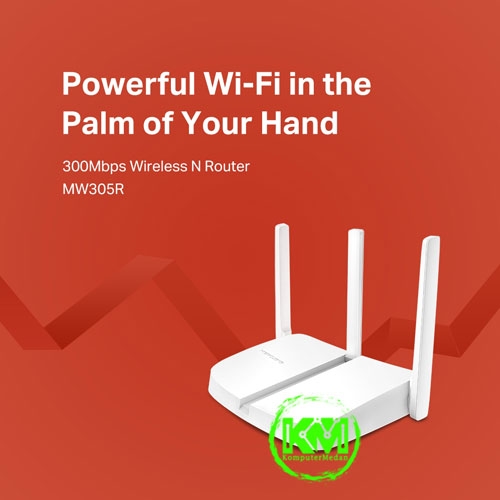

-300Mbps Wireless N Router
-MW305R
-Power adapter
-Quick installation guide
-Ethernet cable
Environment
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
|
