SPESIFIKASI:
WIRELESS
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency
2.4 - 2.5GHz
WiFi Speeds
11n: Up to 300Mbps (Dynamic)
11g: Up to 54Mbps (Dynamic)
11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
270M: -70dBm@10% PER
130M: -72dBm@10% PER
54M: -74dBm@10% PER
11M: -87dBm@10% PER
6M: -92dBm@10% PER
1M: -94dBm@10% PER
Transmission Power
<20dBm
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge
SOFTWARE
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access control
Local management
Remote management
DHCP
Server, DHCP Client List
Port Forwarding
Virtual server, UPnP, DMZ
Dynamic DNS
Oray
Firewall Security
IP and MAC address binding
Protocols IPv4
Guest Network
2.4GHz guest network
HARDWARE
Dimensions 167 x 118 x 33 mm

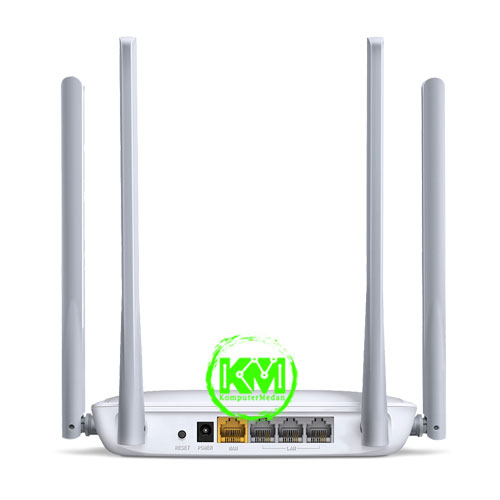

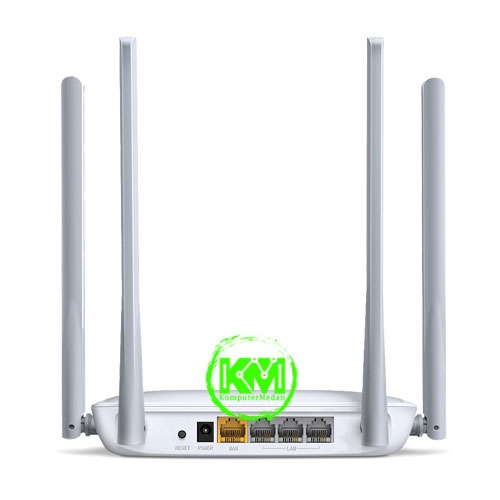

Interfaces
3 10/100Mbps LAN ports
1 10/100Mbps WAN port
Button
Reset button
External Power Supply
5VDC/0.6A
Antenna Type
4 x 5dBi fixed omni directional antennas
OTHERS
Certifications CE, ROHS
Package Contents
-300Mbps Enhanced Wireless N Router
-MW325R
-Power adapter
-Quick installation guide
-RJ45 Ethernet cable
Environment
Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)
Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)
Operating humidity: 10% ~ 90%, non-condensing
Storage humidity: 5% ~ 90%, non-condensing
|
