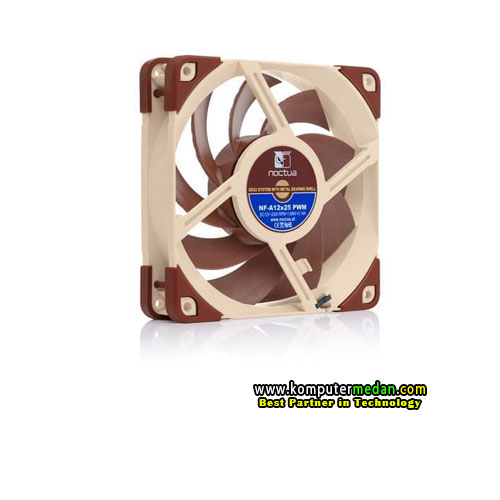

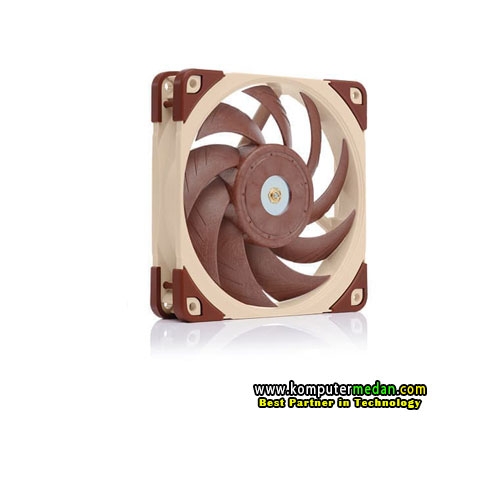

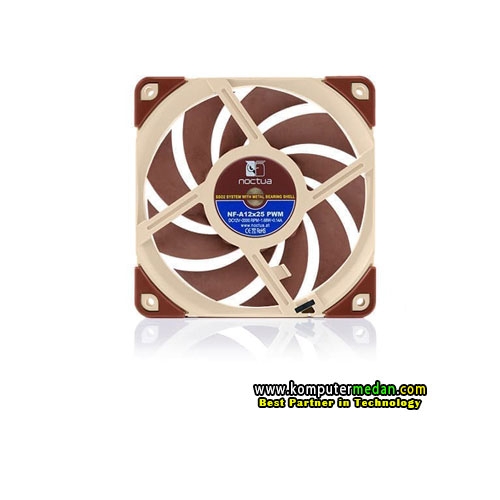

Deskripsi Noctua NF-A12X25 12CM PWM

FAN Specification
Size 120x120x25 mm
Mounting hole spacing 105x105 mm
Connector 4-pin PWM
Bearing SSO2
Blade Geometry A-Series with Flow Acceleration Channels
Frame Technology AAO (Advanced Acoustic Optimisation)
Material Sterrox" LCP
Rotational Speed (+/- 10%) 2000 RPM
Rotational Speed with L.N.A. (+/- 10%) 1700 RPM
Min. Rotational Speed (PWM, +/-20%) 450 RPM
Airflow 102,1 m"/h
Airflow with L.N.A. 84,5 m"/h
Acoustical Noise 22,6 dB(A)
Acoustical Noise with L.N.A. 18,8 dB(A)
Static Pressure 2,34 mm H'""O
Static Pressure with L.N.A. 1,65 mm H'""O
Max. Input Power 1,68 W
Max. Input Current 0,14 A
Voltage 12 V
Voltage PWM signal 5 V
MTTF > 150.000 h
Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-pin y-cable
30cm extension cable
NA-AV2 anti-vibration mounts
Anti-vibration gasket for water cooling radiators
Fan screws
