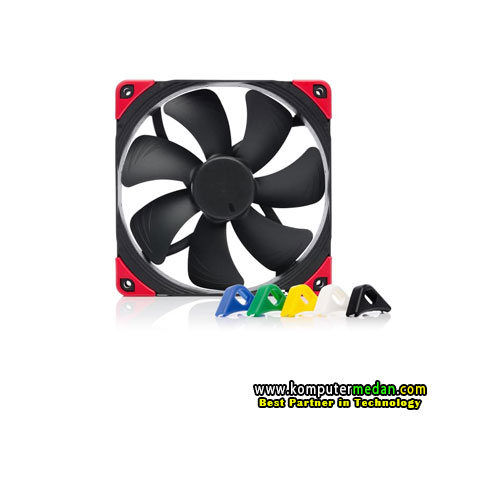

Deskripsi Noctua NF-S12A PWM CH.BK.S

FAN Specification
Size 120x120x25 mm
Mounting hole spacing 105x105 mm
Connector & pin-configuration 4-pin PWM
Cable length 1cm + 30cm NA-EC1 extension cable
Bearing SSO2
Blade geometry S-Series with Anti-Stall Knobs
Frame technology AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%) 1200 RPM
Min. rotational speed (PWM, +/-20%) 300 RPM
Airflow 107,5 m³/h
Acoustical noise 17,8 dB(A)
Static pressure 1,19 mm H₂O
Max. input power 1,44 W
Max. input current 0,12 A
Operating voltage 12 V
MTTF > 150.000 h
Scope of delivery
4x NA-AVP1 chromax•black anti-vibration pads
4x NA-AVP1 chromax•blue anti-vibration pads
4x NA-AVP1 chromax•green anti-vibration pads
4x NA-AVP1 chromax•red anti-vibration pads
4x NA-AVP1 chromax.white anti-vibration pads
4x NA-AVP1 chromax.yellow anti-vibration pads
4x fan screws
