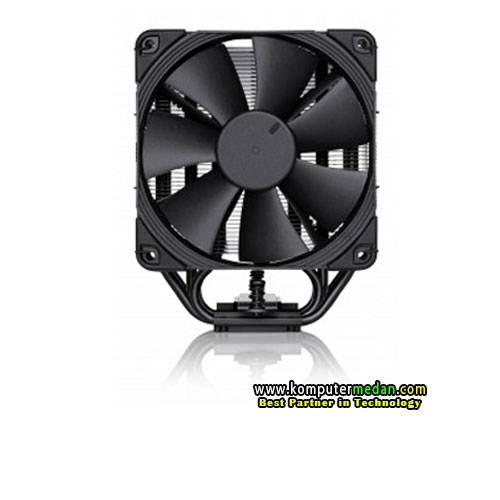

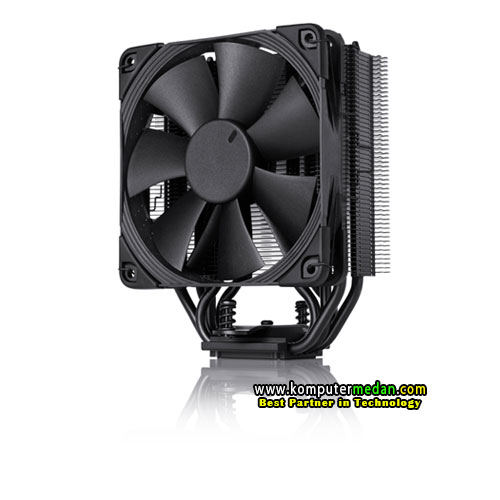

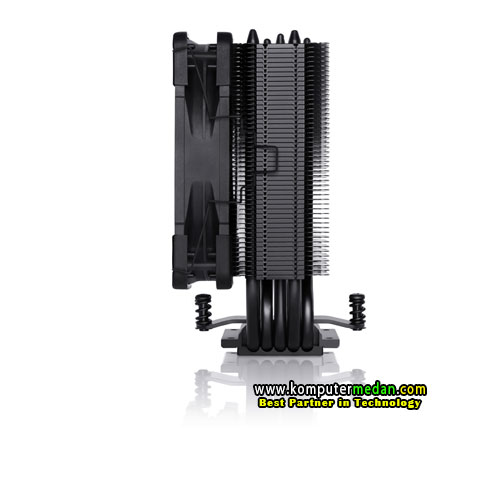

Deskripsi Noctua NH-U12S CH.BK CPU Cooler

Cooler Specification
Socket compatibilityIntel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4
Height (without fan)158 mm
Width (without fan)125 mm
Depth (without fan)45 mm
Weight (without fan)580 g
Height (with fan)158 mm
Width (with fan)125 mm
Depth (with fan)71 mm
Weight (with fan)755 g
MaterialCopper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDPsee CPU compatibility list
Fan compatibility120x120x25

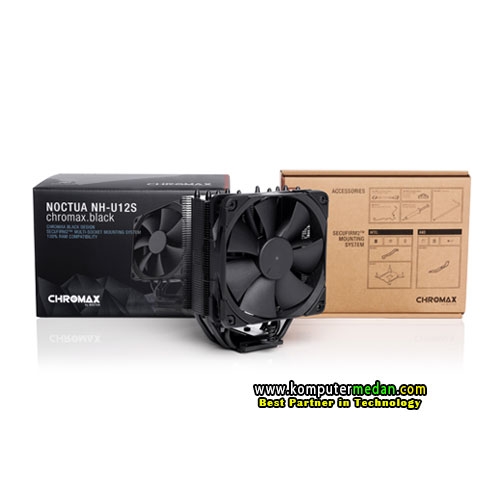

Scope of delivery
Black NH-U12S heatsink
NF-F12 PWM chromax.black premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
Black SecuFirm2™ Mounting Kit
Black anti-vibration pads and fan-clips for second NF-F12
Noctua Metal Case-Badge
Warranty6 Years
FAN Specification
ModelNoctua NF-F12 PWM chromax.black
BearingSSO2
Max. rotational speed (+/- 10%)1500 RPM
Max. rotational speed with L.N.A. (+/- 10%)1200 RPM
Min. rotational speed (PWM, +/-20%)300 RPM
Max. airflow93,4 m³/h
Max. airflow with L.N.A.74,3 m³/h
Max. acoustical noise22,4 dB(A)
Max. acoustical noise with L.N.A.18,6 dB(A)
Voltage range12 V
MTTF> 150.000 h
