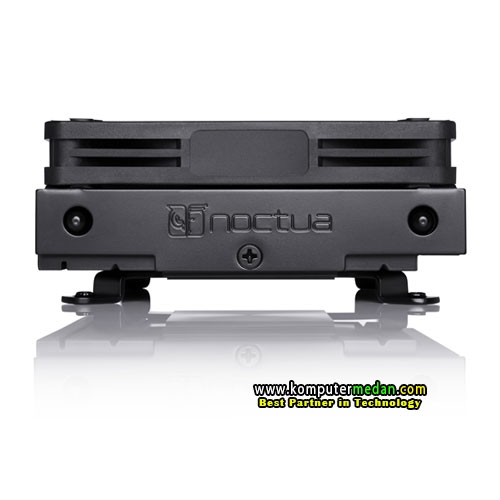

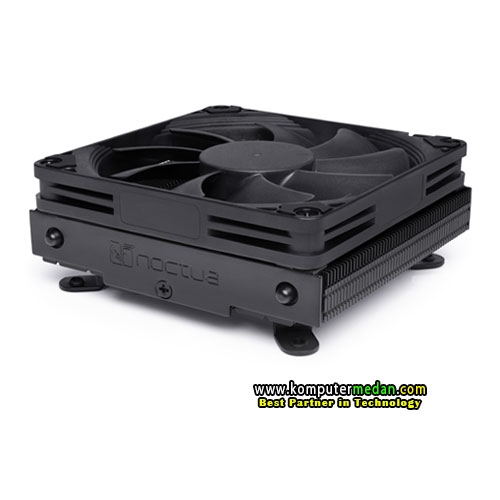

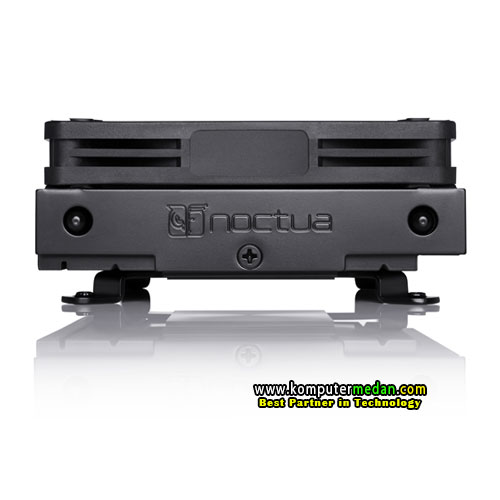

Deskripsi Noctua NH-L9i CH.BK CPU Cooler

General
Notes and warningsThe NH-L9i is a highly-compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. While it provides first rate performance in its class, it is not suitable for overclocking and should be used with care on CPUs with more than 65W TDP (Thermal Design Power). Please consult our CPU compatibility list and TDP guidelines to find out whether the NH-L9i is recommended for your CPU.
Cooler Specification
Socket compatibilityIntel LGA1150, LGA1151, LGA1155, LGA1156, AMD AM4 with NM-AM4-L9aL9i
Height (without fan)23 mm
Width (without fan)95 mm
Depth (without fan)95 mm
Weight (without fan)320 g
Height (with fan)37 mm
Width (with fan)95 mm
Depth (with fan)95 mm
Weight (with fan)380 g
MaterialCopper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Max. TDPsee CPU compatibility list
Fan compatibility92x92x14mm, 92x92x25mm

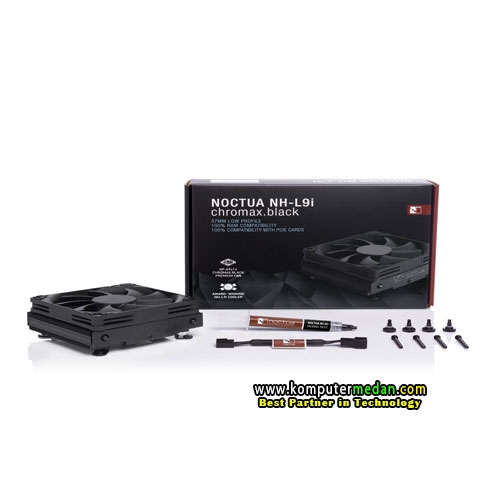

Scope of delivery
Black coated NH-L9i heatsink
NF-A9x14 HS-PWM chromax.black premium fan
Low-Noise Adaptor (L.N.A.)
NT-H1 high-grade thermal compound
Black SecuFirm2™ Mounting Kit
Black Screws for 92x92x25mm fans
Noctua Metal Case-Badge
Warranty6 Years
FAN Specification
ModelNoctua NF-A9x14 HS-PWM chromax.black
BearingSSO2
Max. rotational speed (+/- 10%)2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)1800 RPM
Min. rotational speed (PWM, +/-20%)600 RPM
Max. airflow57,5 m³/h
Max. airflow with L.N.A.40,8 m³/h
Max. acoustical noise23,6 dB(A)
Max. acoustical noise with L.N.A.14,8 dB(A)
Input power2,52 W
Voltage range12 V
MTTF> 150.000 h
