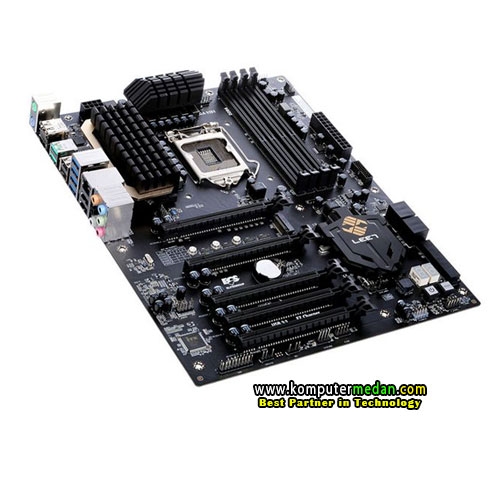

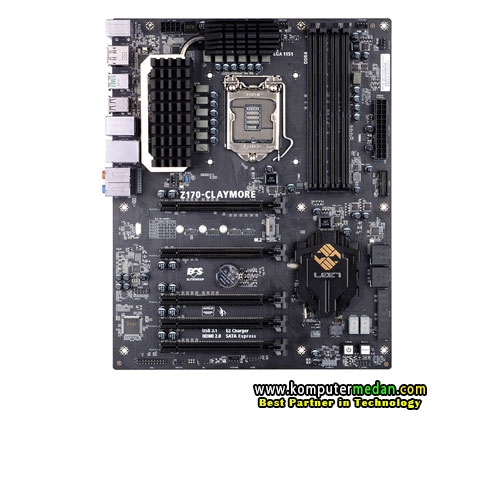

Deskripsi Motherboard ECS Z170-CLAYMORE Intel Socket 1151

Spesifikasi :

Model : Z170-CLAYMORE
CPU Socket Type : LGA 1151
CPU Type : Core i7 / i5 / i3 / Pentium / Celeron (LGA1151)
Chipset : Intel Z170
Number of Memory Slots : 4 288pin
Memory Standard : DDR4
Maximum Memory Supported : 64GB
Channel Supported : Dual Channel
PCI Express 3.0 x16 : 5 x PCI Express 3.0 x16

Other Slots :
- 1 x M.2 slot for SSD
- For 2242/2260/2280 SSD

Storage Devices
- SATA 6Gb/s :4 x SATA 6Gb/s
- SATA RAID : 0/1/5/10

Onboard Audio ;
- Audio Chipset : Realtek ALC1150
- Audio Channels : 8 Channels

Onboard LAN :
- LAN Chipset : Realtek 8118AS
- Max LAN Speed : 10/100/1000Mbps

Rear Panel Ports
- PS/2 : 1 x PS/2 keyboard/mouse port
- HDMI : 1 x HDMI
- DisplayPort : 1 x DisplayPort
- USB 3.1 : 2 x USB 3.1
- USB 3.0 : 4 x USB 3.0
- USB 1.1/2.0 : 4 x USB 2.0
- Audio Ports : 1 x Audio port (Line-in, 4 x Line-out, Mic in)

Form Factor : ATX
- Dimensions (W x L) : 12.0" x 9.6"
- Power Pin :24 Pin

Features:
- Windows 10 Workable support
- 3-Way multi-graphics solution
- 12 Phase Power Design
- Supports Intel K Series unlock CPU
- Applied 100% Solid capacitor design to maximize component reliability
- ECS Durathon Technology ensure the stability, reliability and performance of system
- ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
- ECS EZ charger provides a fast way to charge your smart devices, even if the PC is off
- Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment
- ECS MIB X - A friendly interface for overclocking, especially for gamer
- Supports HDMI 2.0 Technology ( resolution up to 3840 x 2160 pixels )
- Microsoft Windows 8.1 Certified
- Intel 14nm 6th generation Multi-Core CPU support
