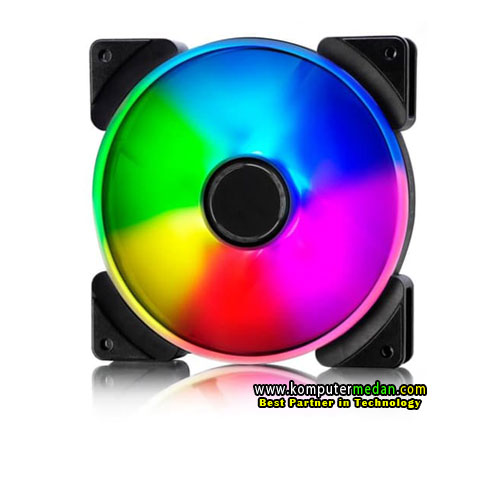

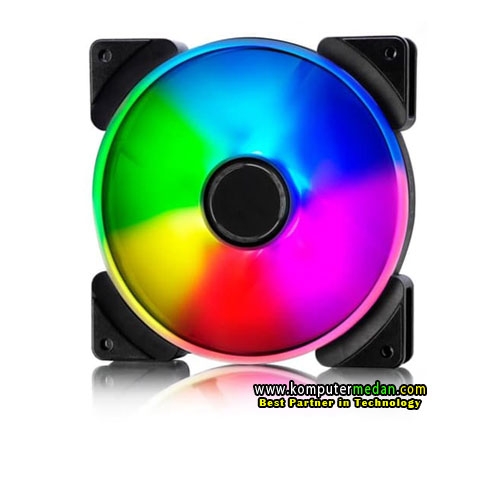

Deskripsi Fan Casing Fractal Design Prisma AL-14 PWM ARGB

Prisma AL-14 PWM

Size
140 x 140 x 25 mm

Blade color
Semi-opaque white

Frame color
Black

LED type
Addressable RGB

Screw hole pattern
125 x 125 mm

Power connector
4-pin

Bearing
LLS

Number of blades
7

Rotational speed
500 1700 RPM

Noise level
34.1 dB(A)

Airflow (CFM)
103.85 CFM

Airflow (m3/h)
176.44 m3/h

Static pressure
2.38 mmH2O

Fan input power
2.16W

Fan max input current
0.30A

Fan input voltage
12V

Fan starting voltage
7V

LED input power
1.50W

LED max input current
0.30A

LED input voltage
5V

Low (0-20%) PWM speed
500 RPM

Low PWM noise level
15.1 dB(A)

Low PWM airflow
31.67 CFM

Low PWM static pressure
0.44 mmH2O

MTBF
100,000 hrs

Fan weight
200 g

Package weight
248 g

Cable length
500 mm

Cable type
Black sleeved

Package dimensions

(Including hanging tab)
202 x 142 x 30 mm

Package dimensions

(Excluding hanging tab)
167 x 142 x 30 mm

Package contents

Prisma AL-14 PWM
Prisma AL-12 PWM 140mm fan
4 x fan screws
