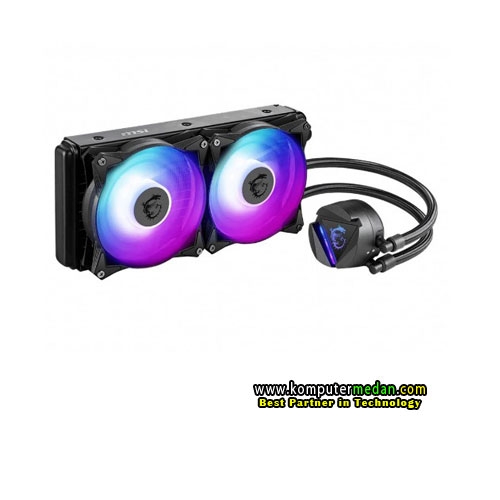

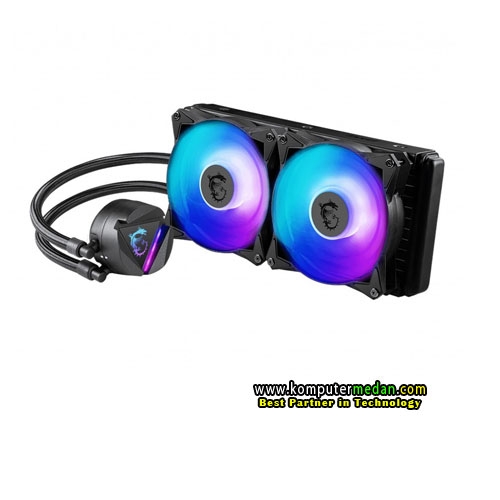

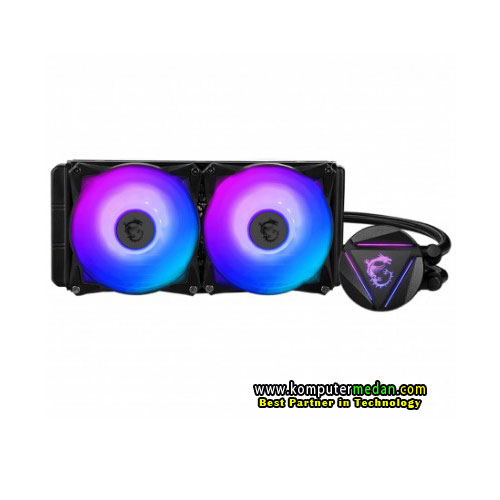

MAG CORELIQUID 280R
Mount the cold plate at any orientation, turn the water blockhead up to 270 degreesThe pump has been integrated into the radiator for sound dampening and noise reductionConstructed with three layers of netted plastic tubing and a reinforced mesh exteriorA split liquid pathway through the radiator rapidly dissipates heat. Cooled liquid is then pumped back into the loopCompatible Sockets & CPU: Intel Socket LGA 1150, 1151, 1155, 1156, LGA1200, LGA1366, LGA2011, LGA2011-3, LGA2066 / AMD Socket AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2

MAG CORELIQUID 280R
CPU Socket
Intel
LGA 1150/1151/1155/1156/1200
LGA 1366/2011/2011-3/2066
AMD
AM4/FM2+/FM2/FM1/AM3+/AM2+/AM2
Radiator
Dimensions
312 x 140 x 27mm / 12.28 x 5.51 x 1.06 inches
Water Cooling Pipe Length
400mm
Material
Aluminum
Fan
Fan Dimensions
140 x 140 x 25mm / 5.51 x 5.51 x 0.98 inches
Fan Speed
500 ~ 1800 RPM
Fan Air Flow
84.36 CFM
Fan Noise Level
14.8~33.28 dBA
Fan Bearing Type
Two Ball Bearing
Fan Connector
4-Pin (PWM)
Fan Rated Voltage
12V DC
Fan Rated Current
0.19 A
Fan Power Consumption
2.28 W
Fan Lighting
ARGB
Pump
Pump Bearing Type
Ceramic Bearing
Pump Speed
4200 RPM
Pump Noise Level
18 dBA
Pump Connector
3-Pin
Pump Rated Voltage
12V DC
Pump Load Current
0.34 A
Pump Power Consumption
4.08 W
