CPU AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Chipset AMD B650
Memory 4 x DIMM, Max. 128GB, DDR5 5200MHz upto 6400MHz (OC)
Supports AMD EXTended Profiles for Overclocking (EXPO)
Onboard Graphics Outputs 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort
PCI Slots AMD Ryzen„¢ 7000 Series Desktop Processors:
1 x PCIe 4.0/3.0 x16 slot(s)
AMD B650 Chipset:
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 4.0/3.0 x1 slots
Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen„¢ 7000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset:
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Networking 1 x 2.5Gb Ethernet
WIFI 6
Bluetooth
Audio Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

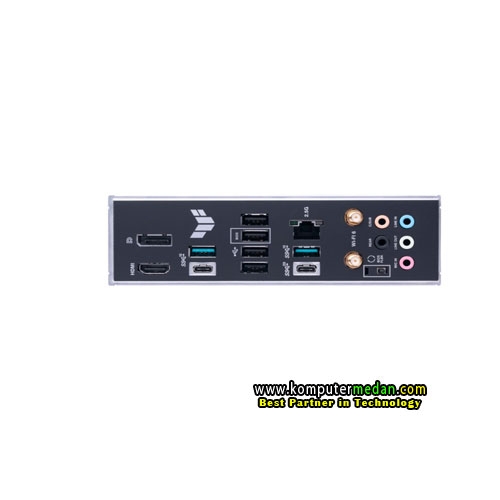

Connectivity 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack„¢ button
Internal Ports Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
