Product Specifications

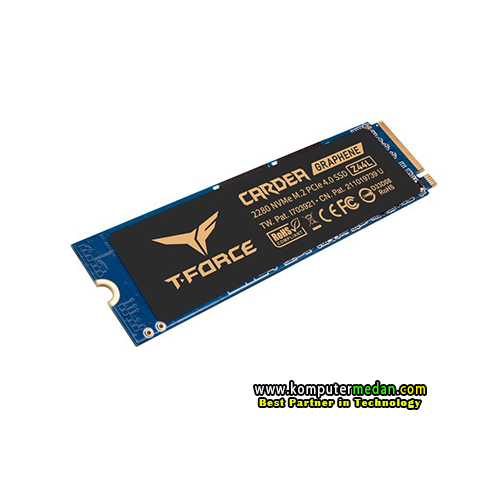

Model CARDEA Z44L
Interface PCIe Gen4x4 with NVMe 1.4
Capacity 500GB / 1TB[2]
Voltage DC +3.3V
Operation Temperature 0˚C ~ 70˚C
Storage Temperature -40˚C ~ 85˚C
Terabyte Written (TBW) 500GB - 200TBW
1TB - 400TBW[3]
Performance Crystal Disk Mark:
500GB Read/Write: up to 3300/2400 MB/s
1TB Read/Write: up to 3500/3000 MB/s[1] IOPS:
500GB Read/Write: 142K/357K IOPS Max
1TB Read/Write: 263K/382K IOPS Max[1]
Weight 7g (PCBA)
Dimensions 80.0(L) x 22.0(W) x 3.7(H) mm
Humidity RH 90% under 40°C (operational)
Vibration 80Hz~2,000Hz/20G
Shock 1,500G/0.5ms
MTBF 3,000,000 hours
Operating System System Requirements:
Windows 10 / 8.1 / 8 / 7 / Vista[4]
Linux 2.6.33 or later
