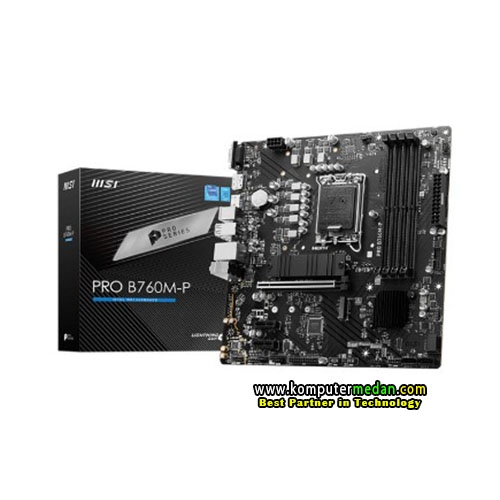

Model Name PRO B760M-P
CPU Support Supports 12th/ 13th Gen Intel®
Core™ Processors, Pentium®
Gold and Celeron®
Processors
CPU Socket LGA 1700
Chipset Intel®
B760 Chipset
Expansion Slots 1x PCIe 4.0 x16 slot
2x PCIe 4.0 x1 slots
Display Interface Support 4K@30Hz as specified in HDMI™ 1.4, DisplayPort
1.4, VGA – Requires Processor Graphics
Memory Support 4 DIMMs, Dual Channel DDR5-6800+MHz(OC)
Storage 2x M.2 Gen4 x4 64Gbps slots,
4x SATA 6Gbps ports
USB Ports 1x USB 3.2 Gen 2 10Gbps (1 Type-C),
3x USB 3.2 Gen 1 5Gbps (3 Type-A),
8x USB 2.0
LAN Realtek®
RTL8111H Gigabit LAN
Audio 8-Channel (7.1) HD Audio with Audio Boost
