SPECIFICATION:
CPU
- Intel Socket 1151 for 6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
- Supports Intel 14 nm CPU
- Supports Intel Turbo Boost Technology 2.0
Chipset
Intel B150
Memory
- 2 x DIMM, Max. 32 GB, DDR4 2133 MHz Non-ECC, Un-buffered Memory
- Dual Channel Memory Architecture
- Supports Intel Extreme Memory Profile (XMP)
Graphics
Integrated Graphics Processor - Intel HD Graphics support
Multi-VGA Output Support: DVI-D/RGB ports
- Supports DVI-D with a max resolution 1920 x 1200 @ 60 Hz
- Supports RGB with a max resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1,024 MB
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, and Insider
Supports up to 2 displays simultaneously
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/2.0 x1
Storage
Intel H110 Chipset:
6 x SATA III 6 Gb/s ports, gray
LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller
Audio
Realtek ALC887 8-Channel High Definition Audio Codec
- Supports: Jack-detection, Front Panel Jack-retasking
Audio Features:
- LED-Illuminated Design: Brighten up your build with the illuminated audio trace path
- Audio Shielding: Helps ensure precision analog/digital separation and reduced multi-lateral interference
- Dedicated Audio PCB Layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Japanese-made Audio Capacitors: Provides warm, natural, and immersive sound with clarity and fidelity
USB Ports
Intel B150 Chipset:
6 x USB 3.0/2.0 ports (4 at the back panel, blue, Type-A, 2 at mid-board)
Intel B150 Chipset:
6 x USB 2.0/1.1 ports (2 at the back panel, black, 4 at mid-board)
Special Features
ASUS 5X Protection II:
- ASUS LANGuard - Up to 2.5X higher surge tolerance
- ASUS Overvoltage Protection - Circuit-protecting power design
- ASUS DIGI+ VRM - 5 Phase digital power design
- ASUS DRAM Overcurrent Protection - Helps prevent damage from short circuits
- ASUS Stainless-Steel Back I/O - Up to 3X corrosion-resistance for greater durability
ASUS EPU:
- EPU
ASUS Features:
- AI Suite 3
- Ai Charger
- Anti-Surge
- USB 3.0 Boost
- Disk Unlocker
- Mobo Connect
- PC Cleaner
ASUS Quiet Thermal Solution:
- Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Push Notice
ASUS Q-Design:
- ASUS Q-Slot
- ASUS Q-DIMM
Media Streamer
Compatible Operating Systems
Windows 10, 64-bit
Windows 8.1, 64-bit
Windows 7, 32-bit/64-bit

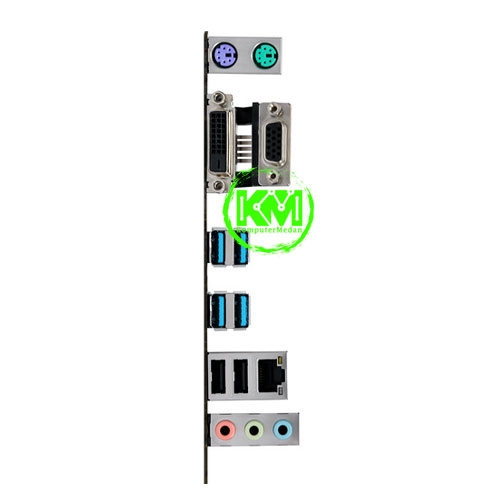

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ-45) port
4 x USB 3.0 (blue) Type-A
2 x USB 2.0
3 x Audio jacks
Internal I/O Ports
1 x USB 3.0 connector supports an additional 2 USB 3.0 ports (19-pin)
2 x USB 2.0 connectors support an additional 4 USB 2.0 ports
1 x COM port connector
6 x SATA III 6 Gb/s connectors
1 x CPU Fan connector (1 x 4-pin)
1 x Chassis Fan connector (1 x 4-pin)
1 x S/PDIF out header
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12 V Power connector
1 x Front panel audio connector (AAFP)
1 x System panel
1 x Clear CMOS jumper
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WfM 2.0, DMI 3.0, WOL by PME, PXE
Form Factor
Micro-ATX Form Factor
8.9 x 7.2" / 22.6 x 18.3 cm
|
