SPESIFIKASI:

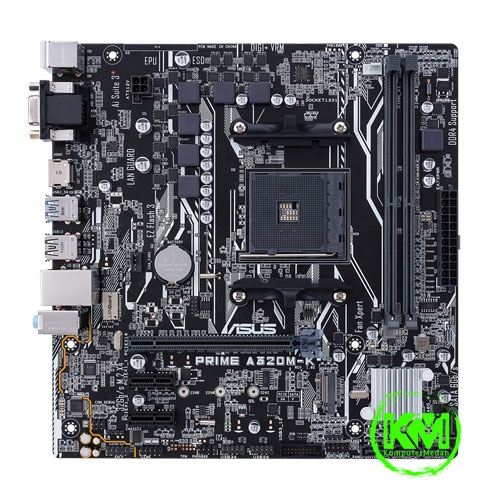

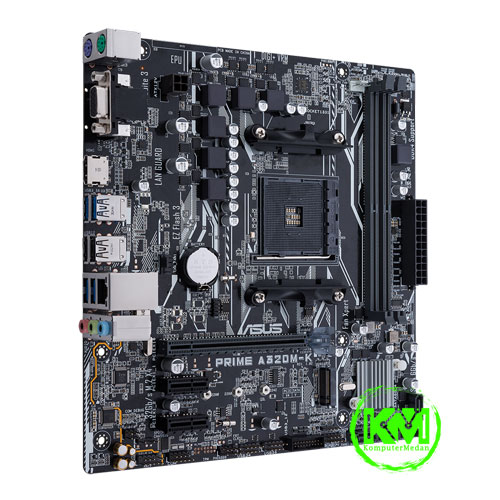

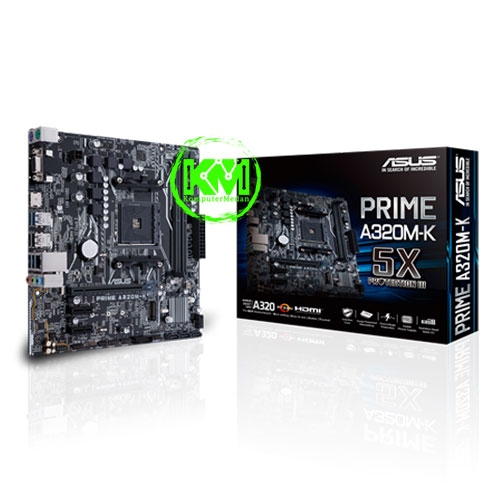

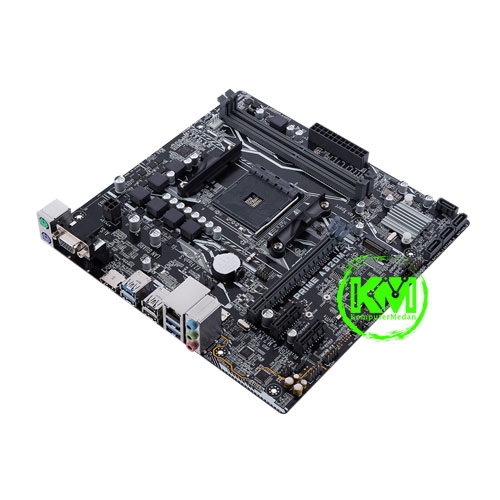

ASUS PRIME A320M-K
CPU
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 Processors
* Refer to www.asus.com for CPU support list
Chipset
AMD A320
Memory
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
AMD 7th Generation A-Series/Athlon X4 Processors
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU
Multi-VGA output support : HDMI/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB (for iGPU exclusively)
Expansion Slots
3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD A320 chipset
2 x PCIe 2.0 x1
Storage
AMD A320 chipset :
4 x SATA 6Gb/s port(s), gray,
Support Raid 0, 1, 10
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series/ Athlon™ X4 Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
LAN
Realtek® RTL8111H, 1 x Gigabit LAN Controller(s)
Audio
Realtek ALC887/897 8-Channel High Definition Audio CODEC
USB Ports
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)
AMD A320 chipset :
2 x USB 3.0 port(s) (2 at mid-board)
AMD A320 chipset :
6 x USB 2.0 port(s) (2 at back panel, , 4 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
Operating System Support
Windows® 10

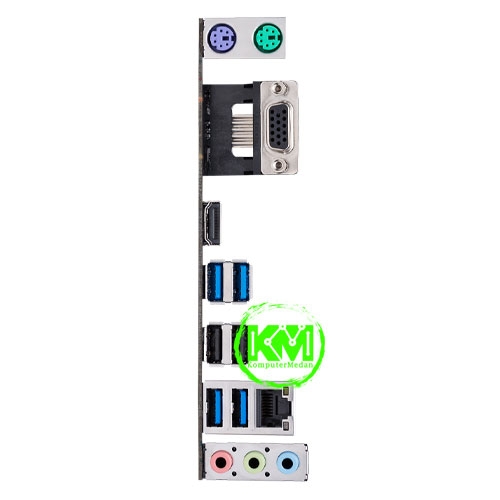

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue)
2 x USB 2.0
3 x Audio jack(s)
Internal I/O Ports
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
4 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x Speaker connector
Accessories
User´s manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control
Operating System
Windows® 10 64-bit
Windows® 7 64-bit *1
Form Factor
mATX Form Factor
8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
Note
*1 Windows 7 64-bit is only supported when using AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation / 7th Generation A-series/ Athlon X4 Processors.
|
