SPESIFIKASI:

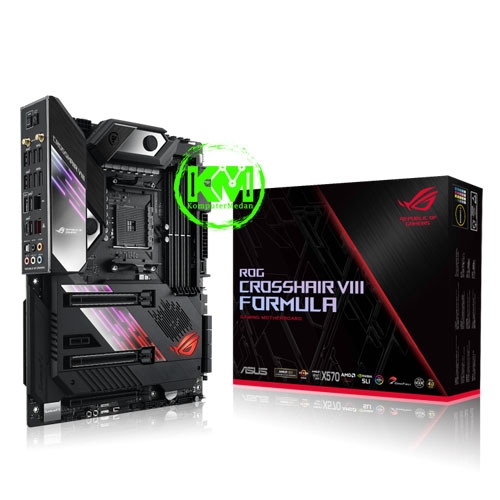

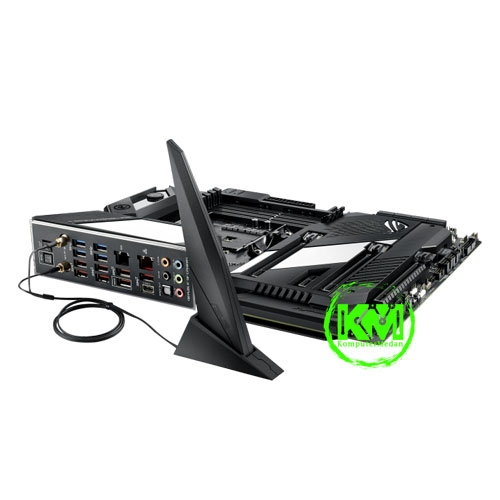

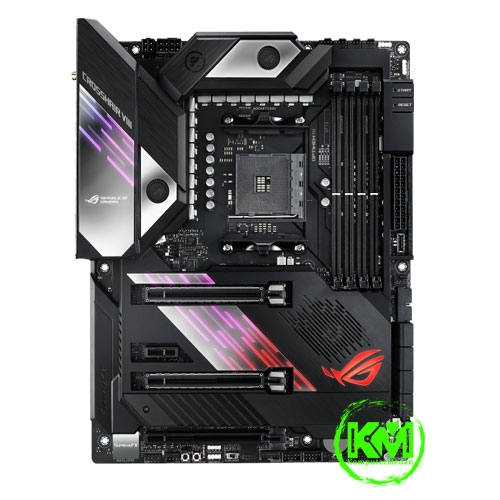

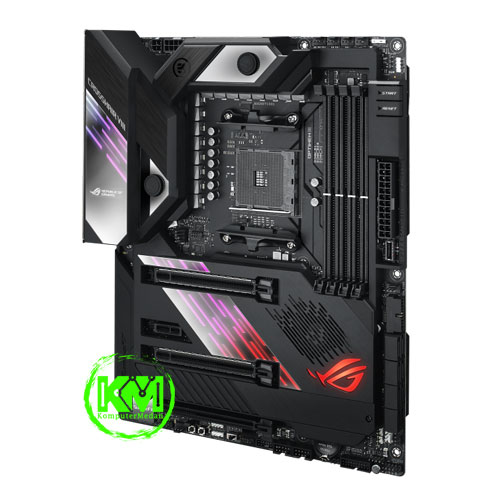

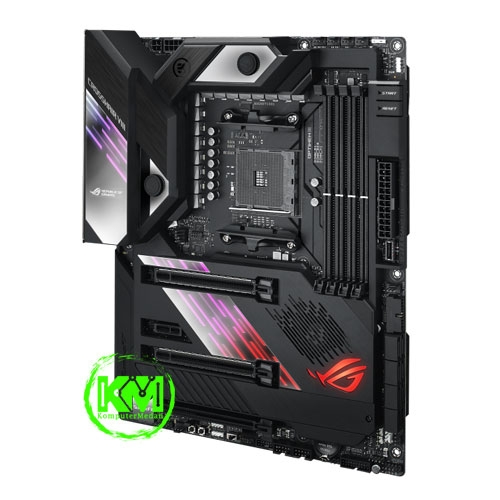

ROG Crosshair VIII Formula
CPU
AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
* Refer to www.asus.com for CPU support list
Chipset
AMD X570
Memory
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/
3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Memory
4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory
4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Memory
3rd Gen AMD Ryzen™ Processors
2nd Gen AMD Ryzen™ Processors
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Multi-GPU Support
Supports AMD 2-Way CrossFireX™ Technology
3rd and 2nd Gen AMD Ryzen™ Processors
Supports AMD 3-Way CrossFireX™ Technology
Supports NVIDIA® 2-Way SLI® Technology
Expansion Slots
1 x PCIe 4.0 x16 (x4 mode)
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x16 (x8 mode)
AMD X570 chipset
1 x PCIe 4.0 x1
Storage
1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support
1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
8 x SATA 6Gb/s port(s),
3rd Gen AMD Ryzen™ Processors :
2nd Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
AMD X570 chipset :
Support Raid 0, 1, 10
LAN
Aquantia AQC111C 5G LAN
ROG GameFirst V Technology
Intel® I211-AT
ASUS LAN Guard
Wireless Data Network
Intel® Wi-Fi 6 AX200
2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
Up to 2.4Gbps transfer speed
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth
Bluetooth® 5.0
Audio
ROG SupremeFX8-Channel High Definition Audio CODEC S1220
- Supports : Multi-streaming, Front Panel Jack-retasking
- ESS® ES9023P
- Supports up to 32-Bit/192kHz playback *
- Gold-plated jacks
* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- SupremeFX Shielding Technology
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
Audio Feature :
- Optical S/PDIF out port(s) at back panel
USB Ports
4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A)
4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A)
4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C)
8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board)
4 x USB 2.0 port(s)
1 x USB 3.2 Gen 2 front panel connector port(s)
3rd Gen AMD RyzenTM Processors :
2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors :
AMD X570 chipset :
Overclocking Features
ROG RGB Armor
Start Button
Reset Button
ROG Aura
Extreme Engine Digi+ :
- IR3555 PoweIRstage®
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- Safe Boot button
- Slow Mode
- LN2 Mode
UEFI BIOS features :
- Tweakers´ Paradise
- ROG SSD Secure Erase
- Graphic Card Information Preview
USB BIOS Flashback®
Crosschill EK III
ROG Patented Pre-mounted I/O Shield
- Mem Tweakit
- RAMDisk
ROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
- Overwolf
Special Features
ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :
- 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
LiveDash OLED
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- Clear CMOS Button
- ASUS Q-Connector
Gamer´s Guardian:
- DRAM Overcurrent Protection
- ESD Guards on LAN, Audio,and USB ports
- USB BIOS Flashback®
- BIOS Flashback® Button
ASUS SafeSlot - Protect your graphics card Investment
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Addressable Gen 2 Header
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-DIMM

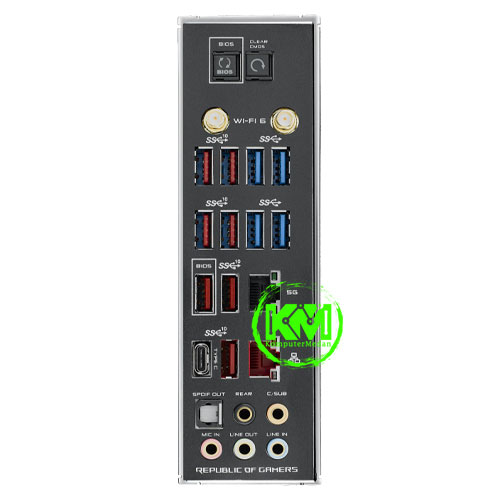

Back I/O Ports
1 x Clear CMOS button(s)
1 x Gold-plated audio jacks
8 x USB 3.2 Gen 2 (up to 10Gbps) ports ()
1 x AQC-111C 5G LAN port
1 x USB BIOS Flashback® Button(s)
1 x ASUS Wi-Fi Module
Anti-surge LAN (RJ45) port
1 x Optical S/PDIF out
4 x USB 3.2 Gen 1 (up to 5Gbps) ports
Internal I/O
2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports
1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode)
1 x Optional Fan connector(s)
1 x H_AMP fan connector
1 x Slow Mode switch(es)
1 x LN2 Mode header(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Safe Boot button
1 x ReTry button
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x Thermal sensor connector
2 x Addressable Gen 2 header(s)
1 x W_PUMP+ connector
1 x Node Connector(s)
1 x System panel connector
1 x USB 3.2 Gen 2 (up to 10Gbps) connector
1 x PCH_FAN
2 x Aura RGB Strip Header(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Speaker connector
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Accessories
1 x ROG logo plate sticker
4 x SATA power cable
1 x ROG big sticker
1 x Q-Connector
1 x ROG coaster(s)
2 x ROG weave SATA 6G cable
1 x Wi-Fi Antenna(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
User´s manual
1 x M.2 Screw Package
1 x Supporting DVD
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
Manageability
WOL, PXE
Operating System
Windows® 10 64-bit
Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
ATX Form Factor
|
