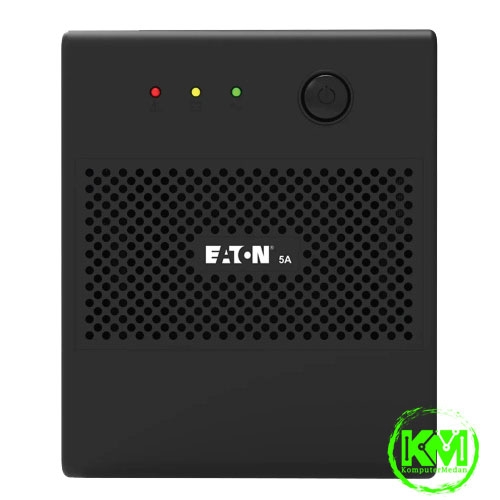

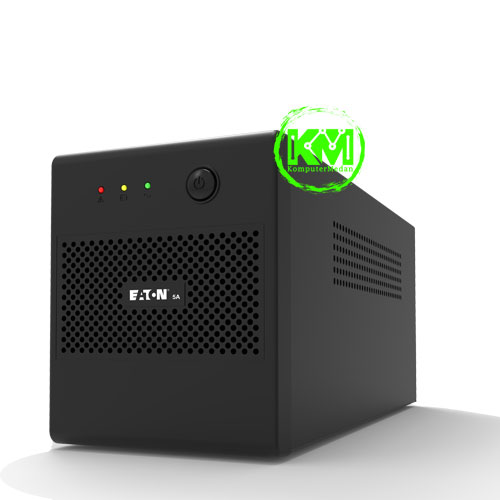

EATON 5A UPS 700VA
P-5A700I-DIN
Line-interactive UPS
Line-interactive technology at an affordable price
• Secure your data and equipment by protecting you against power outages and bad power quality
• With Automatic Voltage Regulation (AVR), Eaton 5A UPS can ride through under & over voltage without utilizing battery
• Unmatched price/performance ratio
• Surge Protection for all outlets
Eaton Reliability
• Rely on batteries anytime: Eaton 5A UPS can start up on batteries without mains (Cold Start)
• Ensure peace of mind with 2 years warranty
Easy Integration
• Ease of connection to any equipment (PC, HD TV, internet gateway) with Universal/ NEMA Universal/ Schuko outlets
• Install Eaton 5A UPS anywhere thanks to its small size
Ideal for protecting:
• PC and workstations
• Internet access point
• Point of sales equipment
• Business telephony
• Self-service kiosk
Specifications:
- Rating (VA/W) 700VA/360W
- Format Tower
ELECTRICAL CHARACTERISTICS
- Input voltage range 140–300 VAC
- Frequency range 60/50 Hz (Auto sensing)
- Surge protection Yes
- Generator compatible Yes
- Mute by power key Yes
- Circuit breaker Yes
OUTPUT
- Output voltage 230 VAC
- Output voltage reg. (Battery mode) ±10%
- Battery wave form Stepped sine wave
- Protection PCBA current sensor (F/W protection)

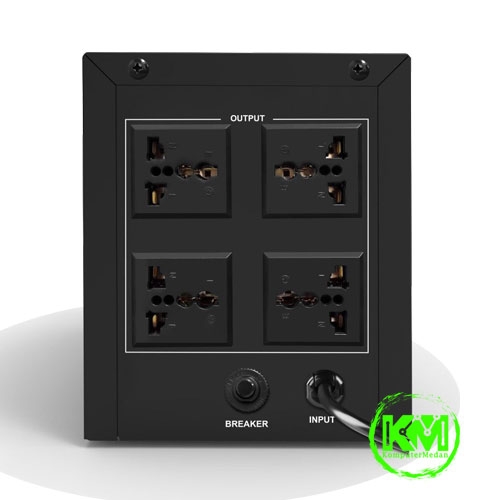

- Output backup socket
DIN model: (2) Schuko outlets
NEMA model: (4) NEMA Universal outlets
UNI model: (2) Universal outlets
- Transfer time 2–6ms typical, 10ms max
BATTERY
- Type 12V/7Ah x1
- Floating Charging Voltage 13.5–13.8V
- Recharge time 4–6 hours recover to 90% capacity
TYPICAL BATTERY RUNTIME
- IT Load (100W) 18 min
- 50% load 5 min
- 75% load 1.5 min
INTERFACE
- On / Off switch Yes
- Indicator LED
- Communication–USB No
- Communication–RS232 No
- RJ11 protection No
PHYSICAL
- Dimension D x W x H (mm) 297*101*142
- Weight 4 kg
|
