Model

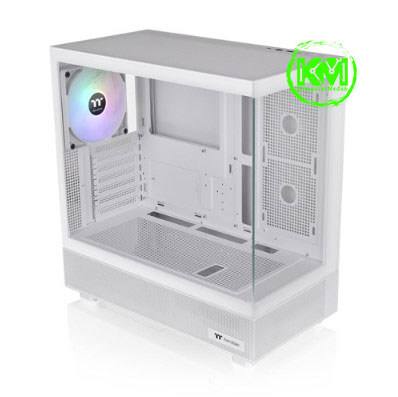

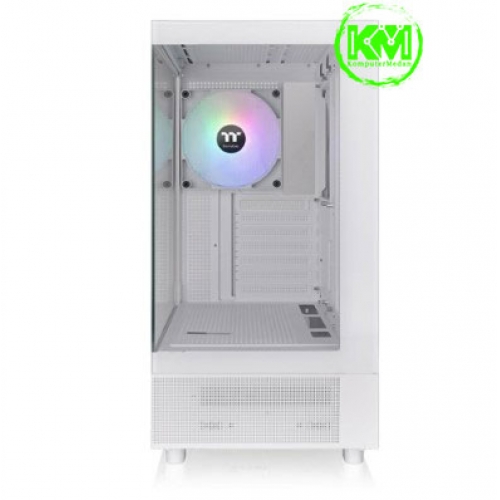

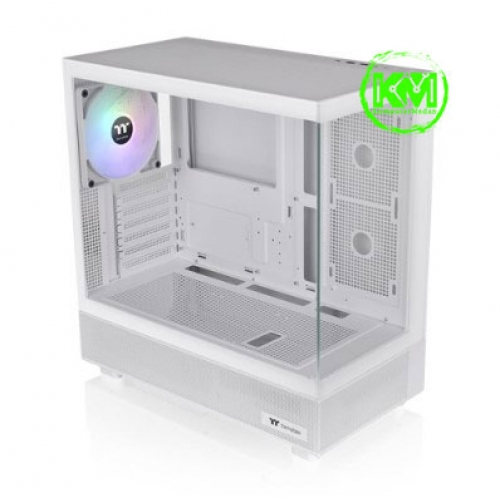

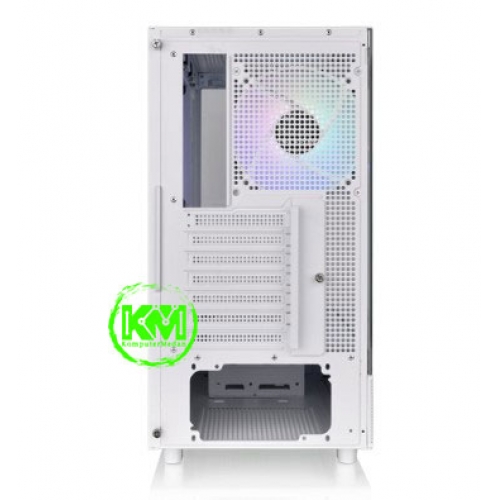

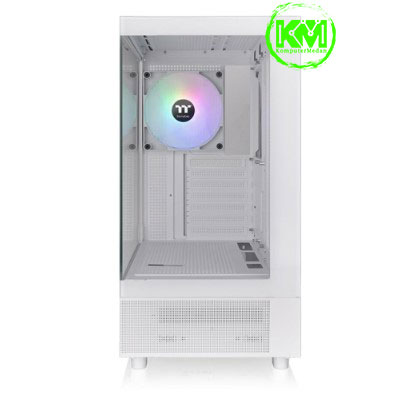

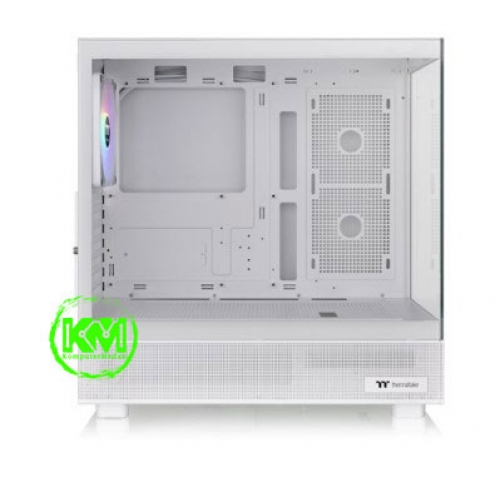

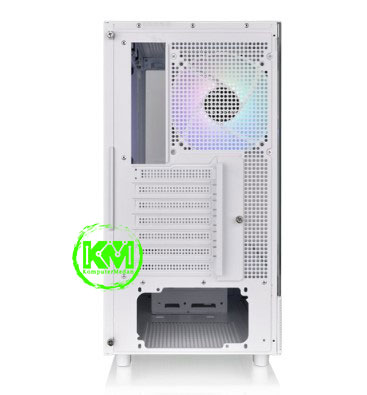

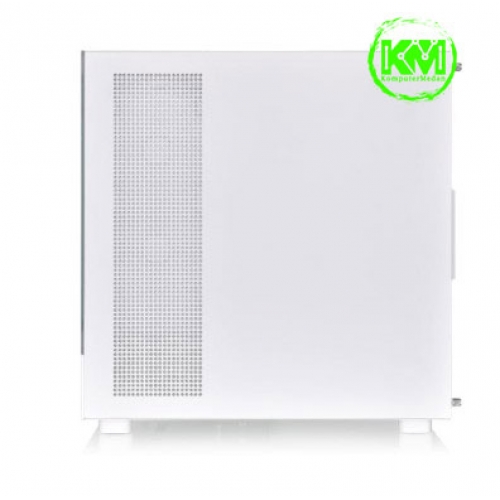

View 270 TG ARGB

Dimension (H x W x D)
456 x 230 x 454 mm
(18 x 9.1 x 17.9 inch)

COOLING SYSTEM
Rear(exhaust): 140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Drive Bays
2 x 3.5”, 1 x 2.5” or 2 x 2.5”

EXPANSION SLOTS
7

MOTHERBOARDS
(Mini ITX),(Micro ATX),
(ATX), (E-ATX)

I/O Port
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

FAN SUPPORT
Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right (M/B Side):
2 x 120mm, 1 x 120mm
Rear:
1 x 120mm, 1 x 140mm

Power Cover:
3 x 120mm, 2 x 120mm, 1 x 120mm
Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
Rear:
1 x 120mm

CPU cooler max height: 180mm

VGA max length: 420mm

PSU max length: 220mm
