SPESIFIKASI;
PRODUCT NAME

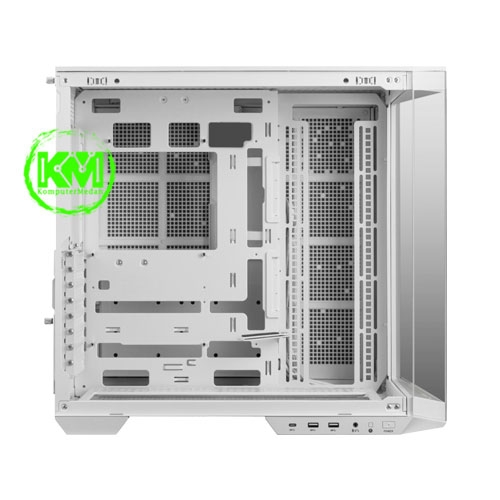

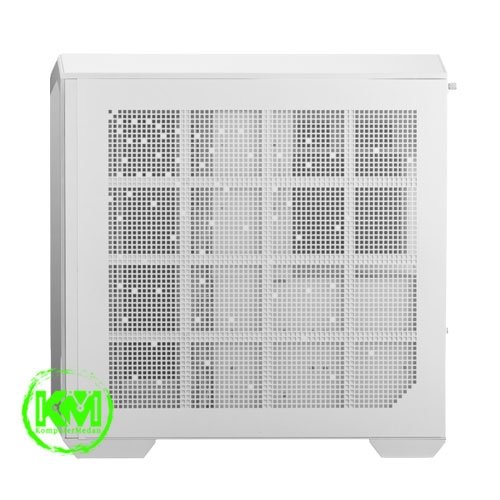

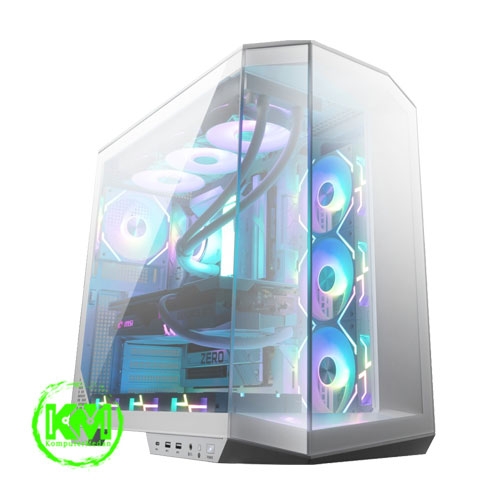

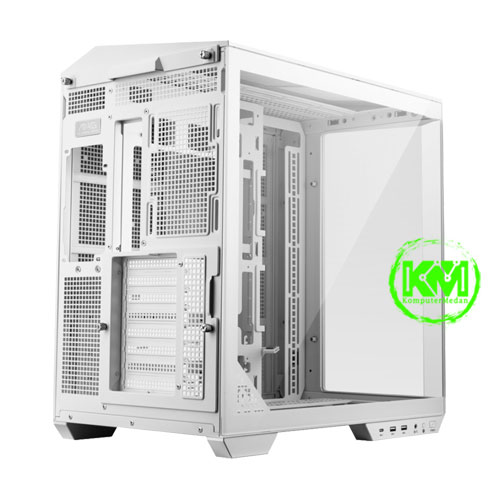

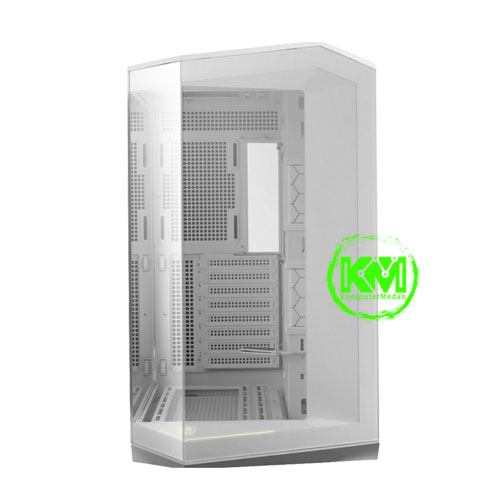

MAG PANO 100L PZ WHITE
CASE FORM FACTOR
Mid Tower
MOTHERBOARD FORM FACTOR SUPPORT
Regular: ATX / Micro-ATX / Mini-ITX
Back-connect: ATX / Micro-ATX
I/O PORTS
1 x USB 20Gbps Type-C
2 x USB 5Gbps Type-A
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button
DRIVE MOUNT SUPPORT
3 x 2.5”
2 x 2.5”/3.5” combo
EXPANSION SLOTS
8
MAXIMUM GPU LENGTH
380 mm / 14.96 inches
MAXIMUM CPU COOLER HEIGHT
166 mm / 6.54 inches
POWER SUPPLY SUPPORT
ATX
MAXIMUM PSU LENGTH
200 mm / 7.87 inches
FAN SIZE SUPPORT
Top: 3 x 120 mm / 3 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
RADIATOR SIZE SUPPORT
Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: 120 / 240 / 360 mm
DIMENSIONS (DXWXH)
518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches
CONNECTION
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-A
Mic In/ Audio Out
Reset Button
|
