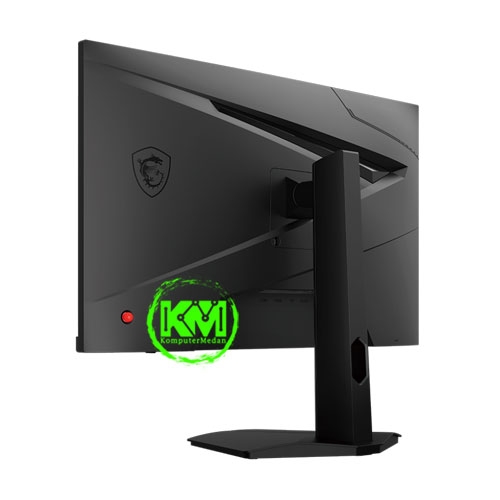

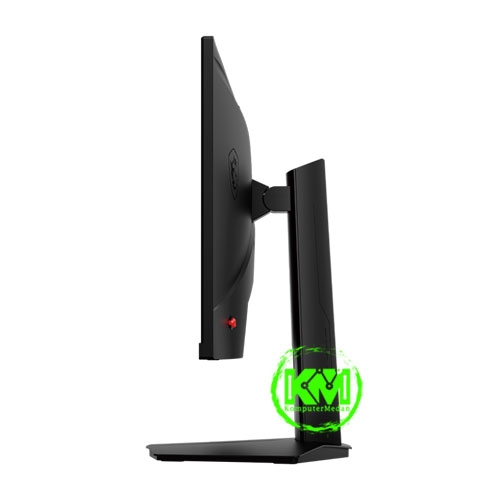

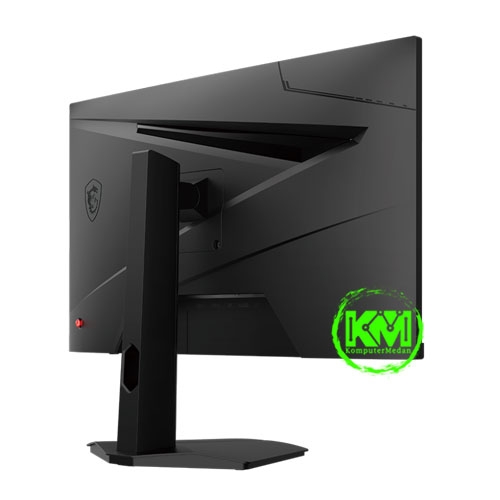

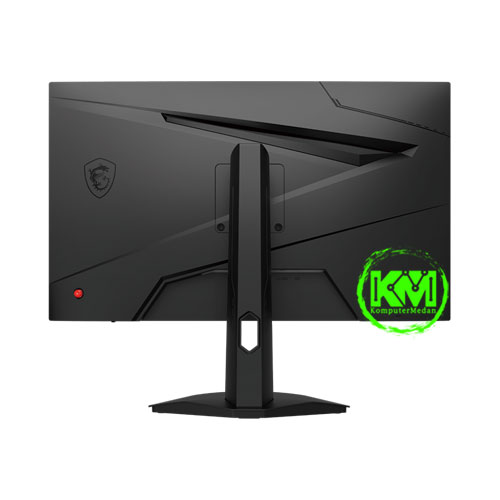

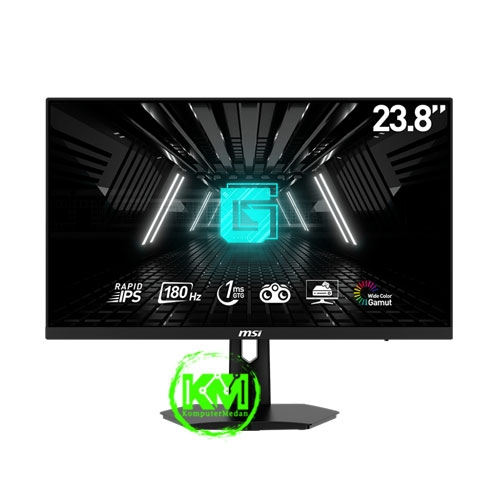

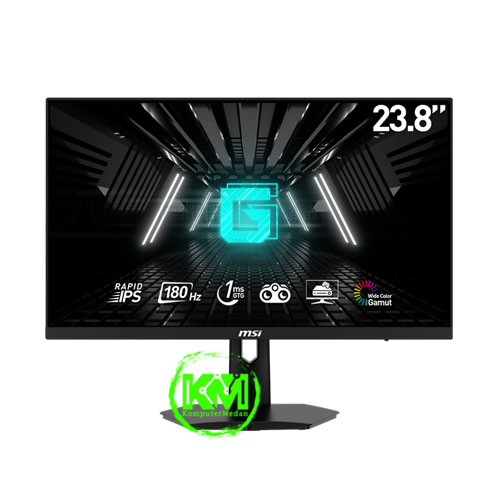

SPESIFIKASI:
Panel Size
23.8” (60cm)
Active Display Area (mm)
527.04(H) x 296.46(V)
Curvature
Flat
Panel Type
Rapid IPS
Panel Resolution
1920 x 1080 (FHD)
Pixel Pitch (H x V)
0.2745(H) x 0.2745(V)
Aspect Ratio
16:9
Brightness (nits)
300
Contrast Ratio
1000:1
DCR
100000000:1
Signal Frequency
55.3~200 KHz(H) /48~180 Hz(V)
ACTIVATED RANGE
48~180Hz
Refresh Rate
180Hz
Response time
1ms (GtG)
DYNAMIC REFRESH RATE TECHNOLOGY
Adaptive-Sync
Video ports
1x Display Port (1.2a)
2x HDMI™ (2.0b)
Audio ports
1x Earphone out
Viewing Angle
178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB
91% / 88% / 118%
Surface Treatment
Anti-glare
Display Colors
16.7M (8bits)
Power Type
External Adaptor 12V 3A
Power Input
100~240V, 50/60Hz
Adjustment (Tilt)
-5° ~ 20°
Kensington Lock
Yes
Dimension (W x D x H)
541.9 x 231.9 x 424.3 mm
541.9 x 59.7 x 322.3 mm (Without stand)
Carton Dimension (W X D X H)
637 x 174 x 433 mm
Frameless Design
Yes
VESA Mounting
75 x 75 mm
Weight (NW / GW)
4.2 kg / 5.6 kg
2.7 kg (without stand)
Note
Display Port: 1920 x 1080 (Up to 180Hz)
HDMI™: 1920 x 1080 (Up to 180Hz)
Adobe RGB, DCI-P3 and sRGB follow CIE1976 Standard
|
