SPESIFIKASI:
WIRELESS
Wireless Standards
IEEE 802.11b/g/n
Frequency
2.4 GHz
WiFi Speeds
300 Mbps
Reception Sensitivity
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm
Transmission Power
< 20 dBm (2.4 GHz)
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
SOFTWARE
DHCP
Server
HARDWARE
Dimensions
90×92×150.5 mm

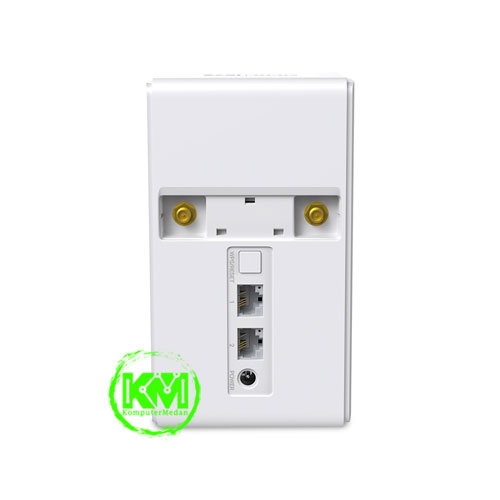

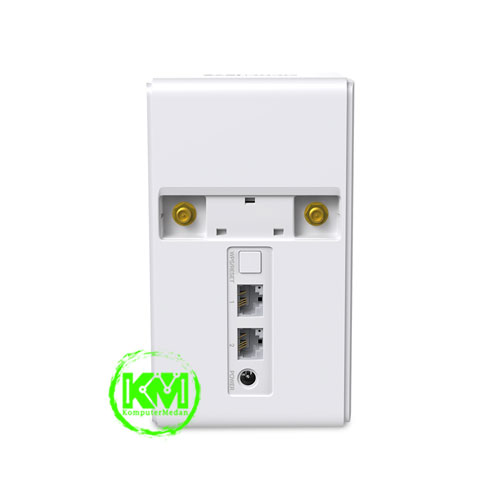

Interfaces
1× 10/100Mbps LAN/WAN Port
1× 10/100Mbps LAN Port
2× 4G/3G External Antenna Ports
1× Nano SIM Card Slot
Button
WPS/Reset Button
Ethernet Ports
1× 10/100 Mbps LAN/WAN Port +
1× 10/100 Mbps LAN
Network Type
EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
UN:
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28/B66 (2100/1900/1800/1700/850/2600/900/700/1700 MHz)
TDD-LTE: B40 (2300 MHz)
HSPA+/UMTS: B1/B2/B4/B5/B8 (2100/1900/1700/850/900 MHz)
OTHERS
Package Contents

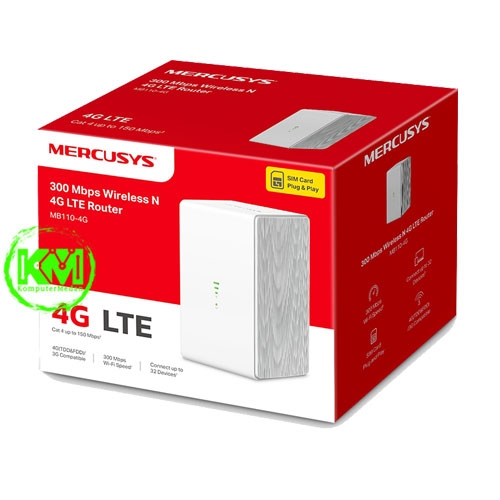

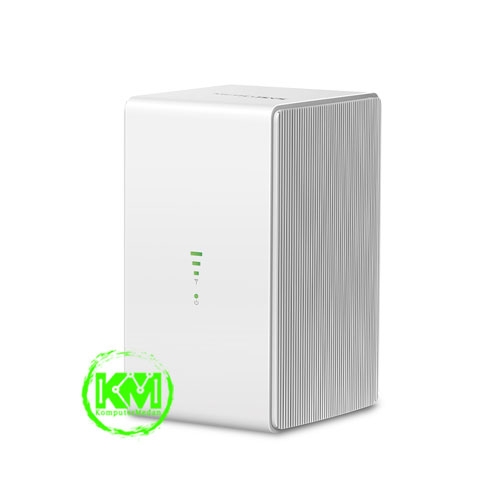

300 Mbps Wireless N 4G LTE Router (MB110-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
|
