SPESIFIKASI:
WIRELESS
Wireless Standards
IEEE 802.11b/g/n
Frequency
2.4-2.4835GHz
Signal Rate
• 11n: Up to 300Mbps (Dynamic)
• 11g: Up to 54Mbps (Dynamic)
• 11b: Up to 11Mbps (Dynamic)
Reception Sensitivity
• 270M: -73dBm@10% PER
• 130M: -75dBm@10% PER
• 54M: -77dBm@10% PER
• 11M: -90dBm@10% PER
• 6 M: -94dBm@10% PER
• 1 M: -96dBm@10% PER
Transmission Power
<20dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridging
SOFTWARE
WAN Type
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Management
Access Control, Local Management, Remote Management
DHCP
Server
Port Forwarding
Virtual Server, UPnP, DMZ
Firewall Security
IP and MAC Address Binding
Protocols
IPv4, IPv6
Guest Network
2.4GHz Guest Network
HARDWARE
Dimensions (W X D X H)
114 mm × 94 mm × 26 mm
Button
Reset Button
External Power Supply
5V/0.6A
Antenna Type
2 * 5dBi

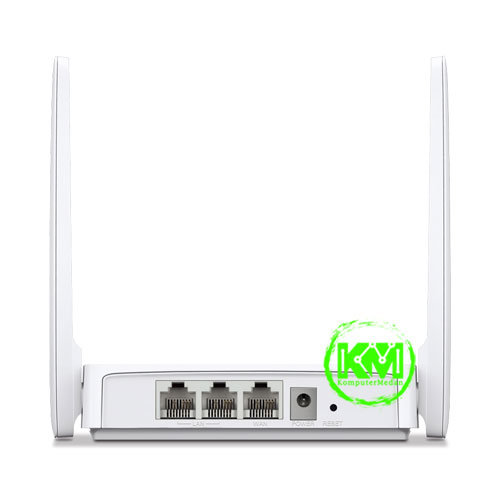

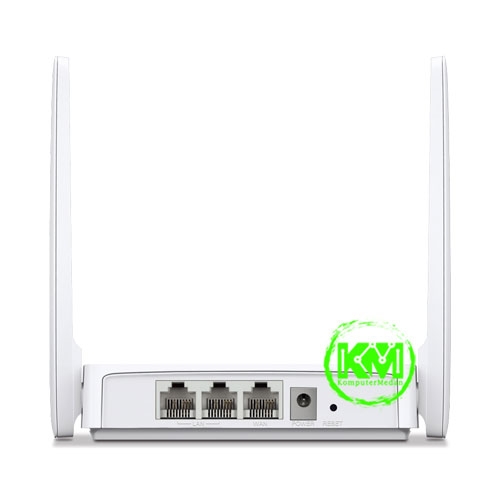

Ethernet Ports
2*10/100Mbps LAN Ports &
1*10/100Mbps WAN Port
OTHERS
Package Contents

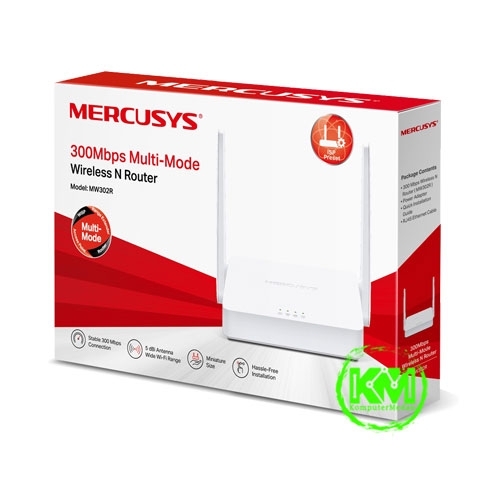

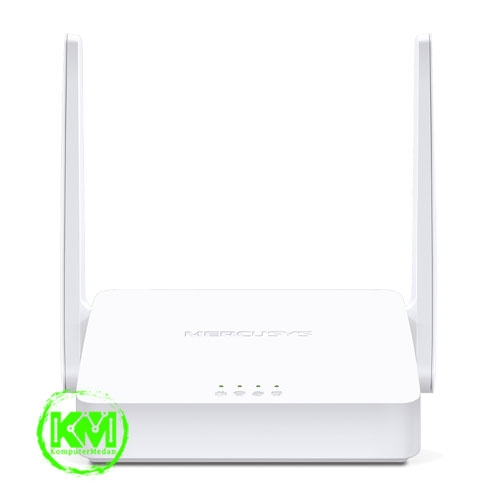

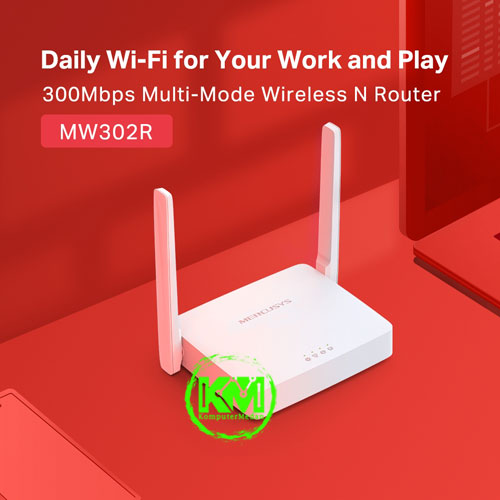

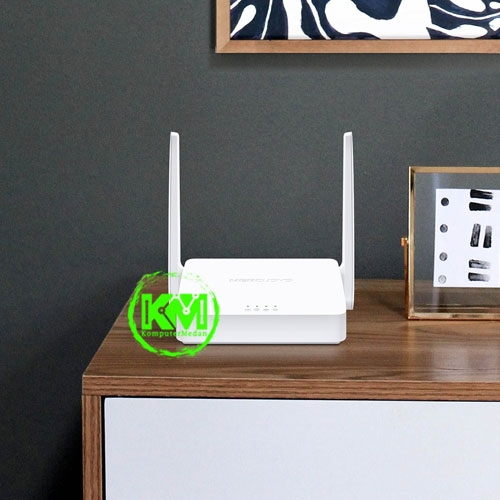

-300Mbps Wireless N Router ( MW302R )
-Power Adapter
-Quick Installation Guide
-Ethernet Cable
Environment
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
|
