SPESIFIKASI:
WIRELESS
Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 GHz, 5 GHz
WiFi Speeds
Up to 300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz
Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -74dBm
11n HT20 MCS7: -71dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WEP
WPA / WPA2-Personal
WPA2 / WPA3-Personal
Wireless Functions
Enable/Disable Wireless Radio, WMM
HARDWARE
Dimensions
4.5 × 3.7 × 1.0 in (114 × 94 × 26 mm)
Interfaces
1× 10/100 Mbps WAN Port
2× 10/100 Mbps LAN Ports
Button
Reset/WPS Button
External Power Supply
9V/0.85A
Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas
SOFTWARE
Operation Modes
Router Mode, Access Point Mode
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access Control, Local Management, Remote Management
DHCP
Server, DHCP Client List
NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security
SPI Firewall, IP and MAC Address Binding
Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network
OTHERS
Package Contents

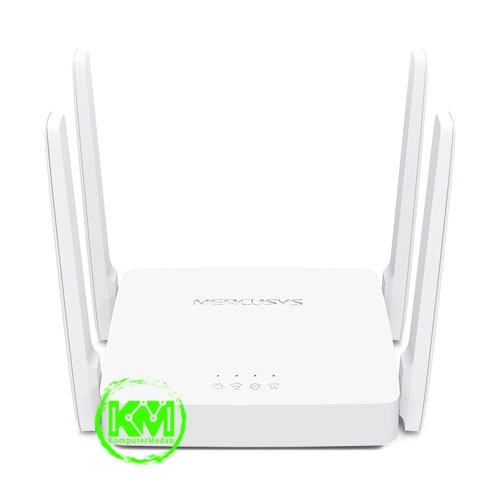

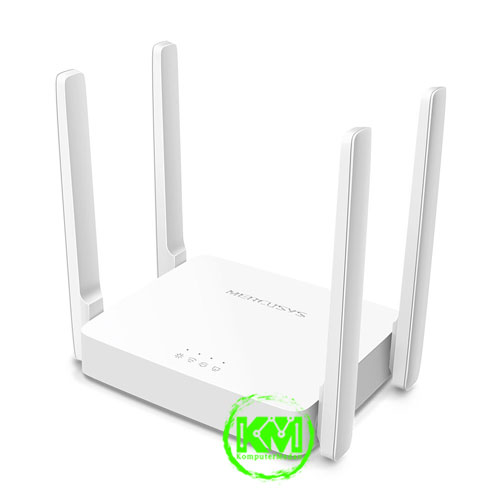

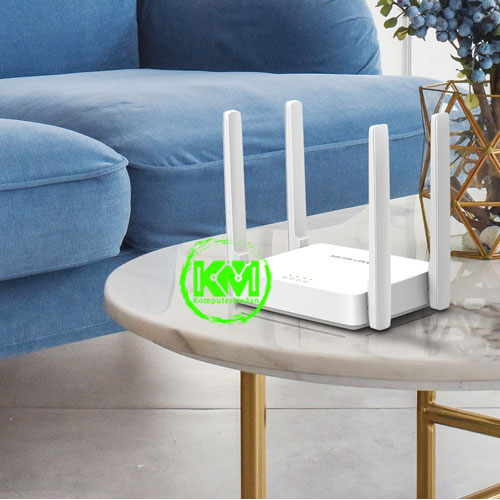

-AC1200 Wireless Dual Band Router AC10
-Power Adapter
-Quick Installation Guide
-RJ45 Ethernet Cable
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
|
