SPESIFIKASI:
-Dual-radio performance, up to 1.267Gbps.
-Get better performance with 802.11ac wave 2’s MU-MIMO technology.
-Support to optimize the entire wireless network with just one click.
-Easily set up your Wi-Fi network with Ruijie Cloud APP in 3 minutes.
-With Ruijie Cloud, easy to maintain your networks remotely.
Model
RG-RAP2200(E)
Radio
Dual-stream dual-band
Protocol
Wi-Fi 5 (IEEE 802.11ac Wave 2/Wave1)
Wi-Fi 4(IEEE 802.11n)
802.11a/b/g
Operating Bands
802.11b/g/n? 2.4 GHz ~ 2.4835 GHz
802.11a/n/ac: 5 GHz: 5.150 GHz?5.350 GHz, 5.725 GHz?5.850 GHz
Antenna
Built-in Omnidirectional Antennas (2.4 GHz: 2dBi, 5 GHz: 2dBi)
Spatial Streams
2.4 GHz: 2x2 MIMO
5 GHz: 2x2 MIMO
Max Throughput
Up to 400 Mbps at 2.4 GHz
Up to 867 Mbps at 5 GHz
1.267 Mbps per AP

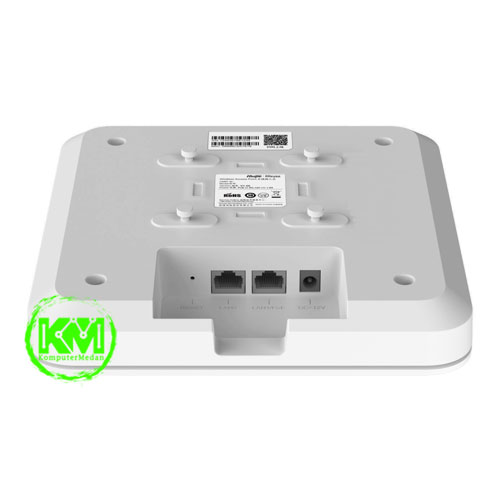

Service Ports
2 x10/100/1000M Base-T
LAN1 port supports PoE
Power Supply
802.3af/802.3at PoE, local power supply, DC 12V/1.5A
(Note: The power adapter is sold as an optional accessory)
Power Consumption
≤ 12.95 W
Operating temperature
0°C?40°C
Storage temperature
-40°C?70°C
MTBF
>400000H
Operating Mode
AP mode and routing mode
Maximum number of clients
110
Recommended number of clients
40 (8 at 2.4 GHz, 32 at 5 GHz)
Maximum Number of SSIDs
|
