SPESIFIKASI:
Camera
Image Sensor 1/4" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
Lens 4mm@ F2.4, view angle: 85° diagonal, 75° horizontal, 45° vertical
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.264
Video Bit Rate Adaptive bit rate.
Max. Resolution 1920 × 1080
Frame Rate Max. 15fps; Self-adaptive during network transmission
Network
Smart Alarm Motion detection
Wi-Fi Pairing AP Pairing
Protocol EZVIZ Cloud Proprietary Protocol
Interface Protocol EZVIZ Cloud Proprietary Protocol
Interface
Storage MicroSD card slot (Max. 256 GB)
Power Micro USB
Wired Network RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard IEEE802.11 b/g/n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth Supports 20MHz
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
General
Power Supply DC 5V/1A
Power Consumption 5W max
IR Range MAX. 10m (32.81 fts)
Dimensions 88 mm x 88.2 mm x 119 mm (3.46” x 3.47” x 4.69”)
Packaging Dimensions 103 mm x 103 mm x 168 mm (4.06” x 4.06” x 6.61”)
Bare Weight 218g (0.48lb)
Packaging Contents

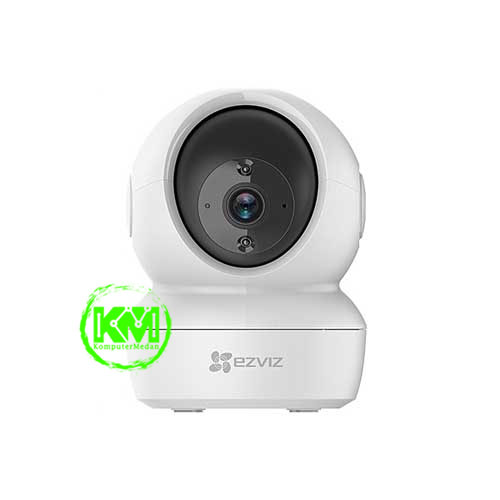

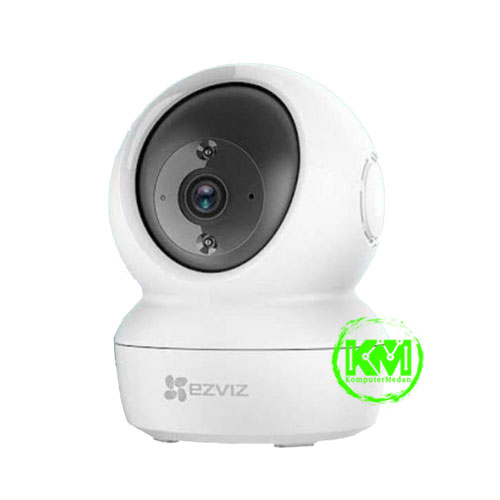

Packaging Contents C6N camera; Base; Screw Kit; Power Cable 3m (9.8 ft.); Drill Template; Power Adapter; Quick Start Guide
Operating Environment
Temperature -10° C to 45° C (14° F to 113° F)
Humidity 95% or less (non-condensing)
Certifications
Certifications FCC / UL / CE / WEEE / REACH / RoHS
|
