SPESIFIKASI:

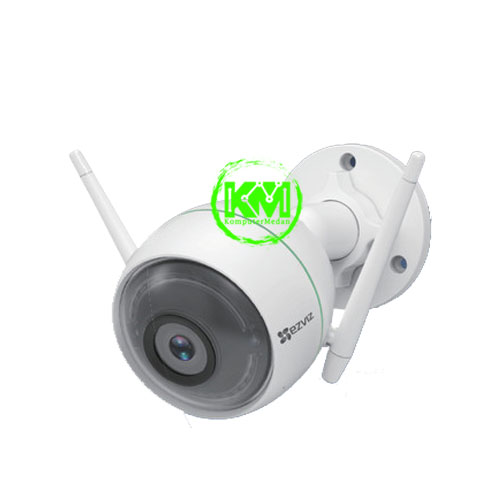

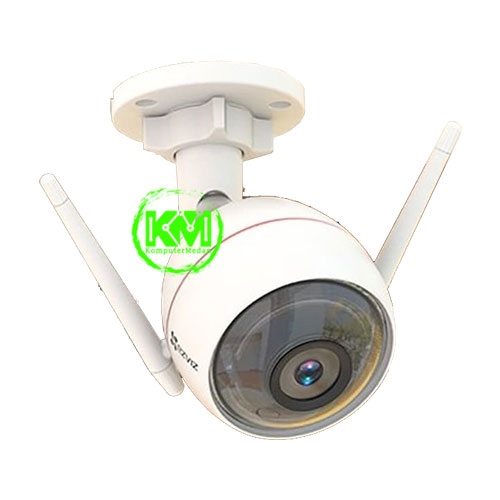

Name : C3WN
Model : CS-CV310-A0-1C2WFR
Camera
Image Sensor : 1/2.9" Progressive Scan CMOS
Minimum Illumination : 0.02 lux @(F2.0, AGC ON), 0 lux with IR
Shutter Speed : Self-adaptive shutter
Lens : 2.8mm @ F1.8, view angle: 95° (Horizontal), 110°(Diagonal)
4mm@ F2.0, view angle: 81° (Horizontal), 94°(Diagonal)
Lens Mount : M12
Day & Night : IR-cut filter
DNR : 3D DNR
WDR : Digital WDR
Compression
Video Compression : H.264
H.264 Type : Main profile
Video Bit Rate : Ultra-HD; HD; Standard. Adaptive bit rate
Auto Bit Rate : Self-adaptive
Max. Resolution : 1920 x 1080
Frame Rate : Max: 30fps; Self-Adaptive during network transmission
Interface
Storage : Micro SD card (Max. 256G)
Wired Network : RJ45 × 1(10M/100M Adaptive Ethernet Port)
Network
Smart Alarm : Motion detection
Wi-Fi Pairing : AP pairing
Protocol : EZVIZ Cloud proprietary protocol
Interface Protocol : EZVIZ Cloud proprietary protocol
General Features : Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
Max. Bitrate : 2Mbps
Wi-Fi
Standard : IEEE802.11b, 802.11g, 802.11n
Frequency Range : 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth : Supports 20MHz
Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate : 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps
General
Power Supply : DC 12V/1A
Power Consumption : Max. 6W
IP Grade : IP66
IR Range : Max. 30 meters (98.43ft)

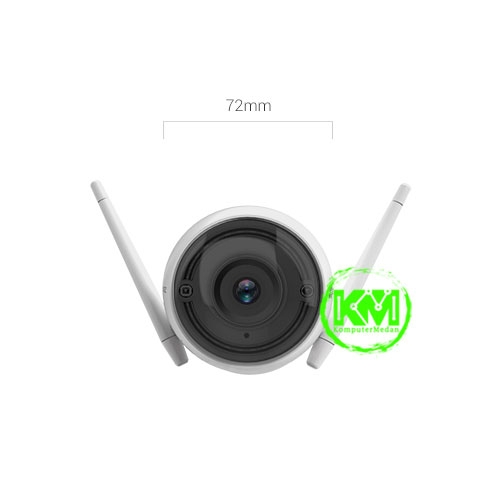

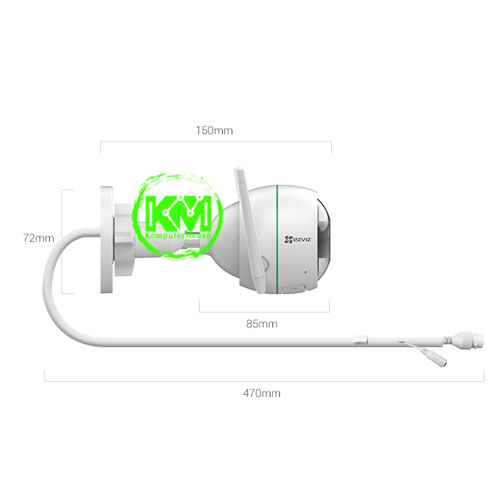

Product Dimensions : 72mm x 72mm x 150 mm (2.83 x 2.83 x 5.91”)
Packaging Dimensions : 252mm x 110mm x 92mm (9.92 x 4.33 x 3.62”)
|
