SPESIFIKASI:
Model : CS-C3TN(2MP)
Camera
Image Sensor : 1/2.7”Progressive Scan CMOS
Minimum Illumination : 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Speed : Self-adaptive shutter
Lens : 2.8 mm @ F2.0, view angle: 106° (Horizontal), 122°(Diagonal)
Lens Mount : M12
DNR : 3D DNR
WDR : Digital WDR
Compression
Video Compression : H.265 / H.264
Video Bit Rate : Ultra-HD; HD; Standard. Adaptive bit rate.
Max. Resolution : 1920 × 1080
Frame Rate : Max: 30fps; Self-Adaptive during network transmission
Network
Wi-Fi Pairing : AP Pairing
Protocol : EZVIZ Cloud Proprietary Protocol
Interface Protocol : EZVIZ Cloud Proprietary Protocol
General Function : Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Max. Bitrate : 2M
Interface
Storage : Micro SD card slot (Max. 256 GB)
Wired network : RJ45 × 1(10M/100M Adaptive Ethernet Port)
Wi-Fi
Standard : IEEE802.11b, 802.11g, 802.11n
Frequency Range : 2.4GHz ~ 2.4835 GHz
Channel Bandwidth : Supports 20MHz
Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate : 11b: 11Mbps,11g: 54Mbps,11n: 144Mbps
General
Operating Conditions : -4°F to 122 °F (-20ºC to 50ºC ); Humidity 95% or less ( non-condensing)
Power Supply : DC 12V/1A
Power Consumption : Max. 6W
IP Grade : IP 67
Night Vision Distance (Black/White Night Vision Mode) : Max. 30 m (98 ft)

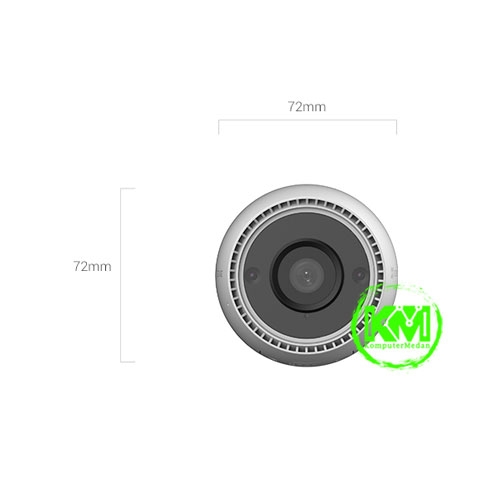

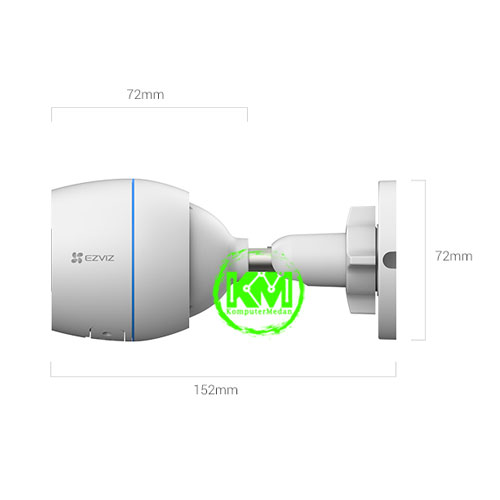

Dimensions : 72 × 72 × 152 mm (2.83 × 2.83 × 5.98 inch)
Packaging Dimensions : 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)
Net Weight : 253 g (8.9 oz)
In the box
- C3TN Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications
CE / FCC / UL / RoHS / WEEE
|
