SPESIFIKASI:

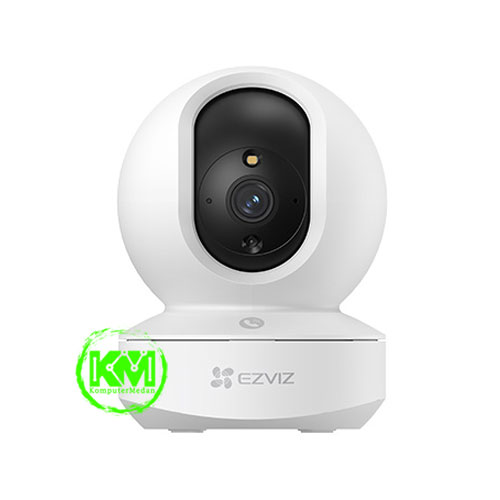

Model
CS-TY1-R105-1L2WF
Camera
Image sensor : 1/3" Progressive Scan CMOS
Shutter Speed : Self-adaptive shutter
Lens : 4mm @ F1.6; Viewing angle: 80° (Horizontal), 43° (Vertical), 90° (Diagonal)
Lens Mount : M12
Day & Night : IR-cut filter with auto switch
DNR : 3D DNR
WDR : Digital WDR
Compression
Video Compression : H.264/H.265
Video Bit Rate : Adaptive bit rate.
Max. Resolution : 1920 × 1080
Frame Rate : Self-Adaptive during network transmission
Network
Smart Alarm : Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode
Wi-Fi Pairing : AP paring
Protocol : EZVIZ cloud proprietary protocol
Interface Protocol : EZVIZ cloud proprietary protocol

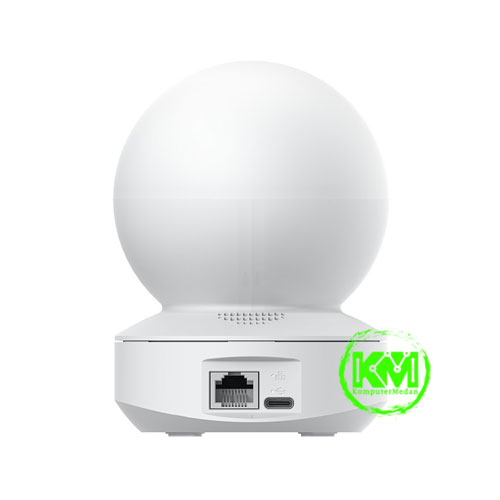

Interface
Storage : Micro SD card slot (Max. 512G)
Power : Type-C
Wired Network : RJ45 X 1 (10M/100M self-adaptive Ethernet port)
Wi-Fi
Standard : IEEE802.11b, 802.11g, 802.11n
Frequency Range : 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth : Supports 20MHz
Security : WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate : 11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps
Output Power(EIRP) : 19 dBm
Antenna Gain : 1.9 dBi
General
Operating Conditions : -10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing)
Power Supply : DC 5V/1A
Power Consumption : MAX. 5W
IR Range : MAX. 10 meters(32.81ft)
Dimensions : 88mm x 88.2 mm x 119mm (3.46” x 3.47” x 4.69”)
Packaging Dimensions : 103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”)
Bare Weight : 218g (0.48lb)

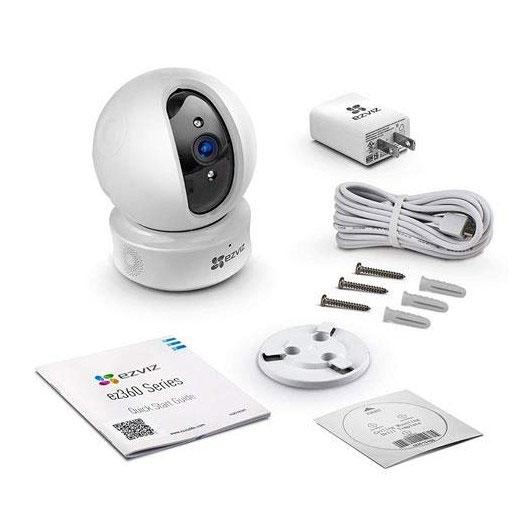

In the box
- Camera
- Power Adapter
- Power Cable
- Drill Template
- Mounting Plate
- EZVIZ Screw Kit
- Regulatory Information
- Quick Start Guide
Certifications
CE (EMC / LVD / RED / ROHS) / UKCA / REACH / SVHC / WEEE / UL
|
