SPESIFIKASI:
Model

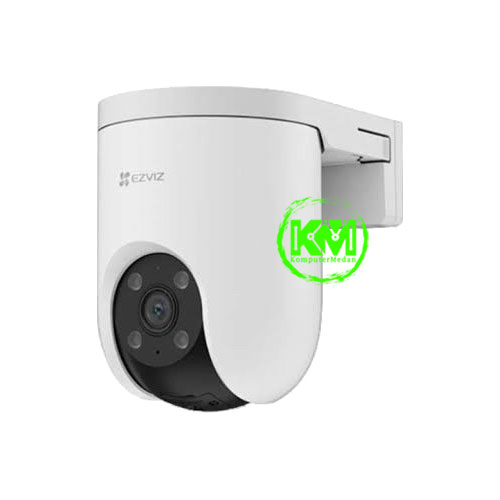

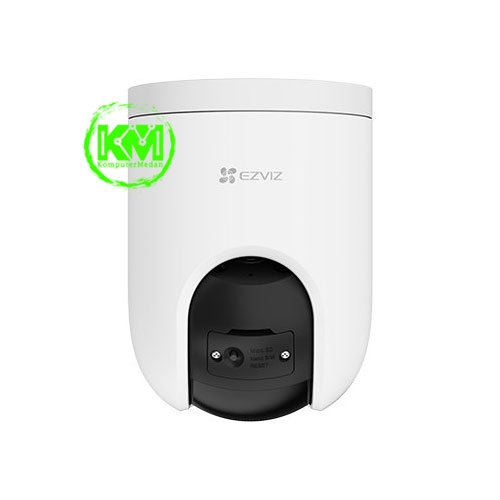

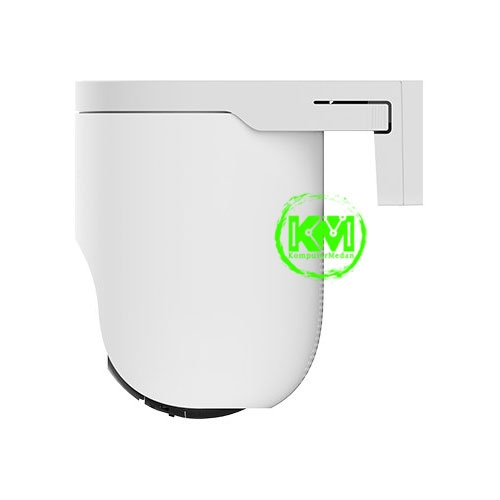

CS-H8c-R200-1K3KFL4GA
Camera
Image Sensor : 1/2.8" Progressive Scan CMOS
Shutter Speed : Self-adaptive shutter
Lens : 4mm@ F1.6, viewing angle: 46° (Vertical), 86° (Horizontal), 102° (Diagonal) 6mm@ F1.6, viewing angle: 28° (Vertical), 52° (Horizontal), 62° (Diagonal)
PT Angle : Pan: 350°, Tilt: 80°
Minimum Illumination : 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount : M12
DNR : 3D DNR
WDR : Digital WDR
Black & White Night : 30m / 98ft
Video & Audio
Max Resolution : 2304 × 1296
Frame Rate : Max:30fps; Self-Adaptive during network transmission
Video Compression : H.265 / H.264
H.265 Type : Main Profile
Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate : Self-Adaptive
Max. Bitrate : 3 Mbps
Network
Frequency Bands:
IN LTE-FDD：B1/B3/B5/B8
IN LTE-TDD：B34/B38/B39/B40/B41
EU LTE-FDD：B1/B3/B5/B7/B8/B20/B28
LA LTE-FDD：B2/B3/B4/B5/B7/B8/B28/B66
Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Functions
Smart Alarm : Human Motion Detection,Vehicle Detection
Auto Tracking : Supports
Customized Alert Area : Supports
Two-way Talk : Supports
Preset Locations : Supports
General Function : Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage : Supports microSD Card (Up to 512 GB)
Cloud Storage : Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions : -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade : Weatherproof Design
Power Supply : DC 12V/1A
Dimensions : 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)
Packaging Dimensions : 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)
Weight
Net Weight: 513.8 g (18.12 oz)
With Package: 796.7 g (28.1 oz) For EU Standard Version
In the box
- H8c 4G Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications
|
