SPESIFIKASI:
Model

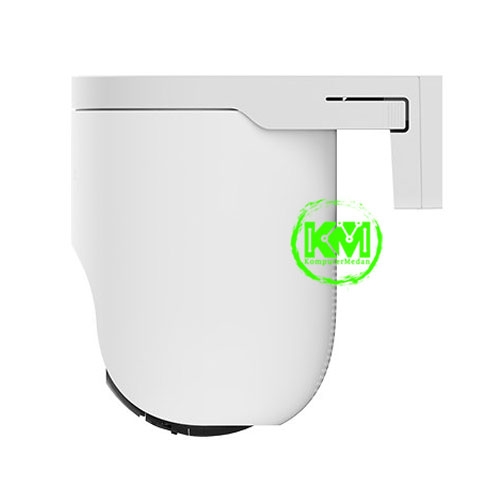

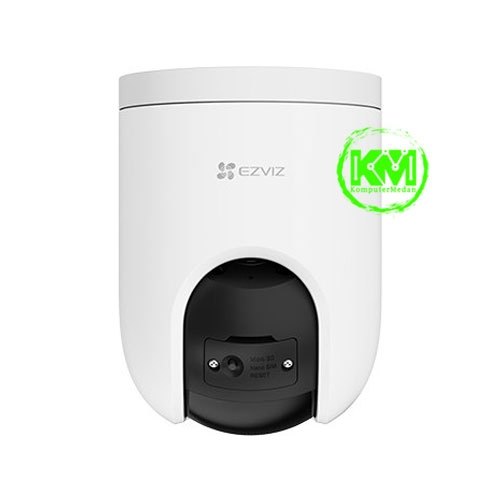

CS-H8c Pro (3K)
Camera
Image Sensor : 1/2.7" Progressive Scan CMOS
Shutter Speed : Self-adaptive shutter
Lens : 4mm@ F1.6, viewing angle: 48° (Vertical), 91° (Horizontal), 108° (Diagonal) 6mm@ F1.6, viewing angle: 30° (Vertical), 56° (Horizontal), 66° (Diagonal)
PT Angle : Pan: 350°, Tilt: 80°
Minimum Illumination : 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount : M12
DNR : 3D DNR
WDR : Digital WDR
Black & White Night : 30m / 98ft
Video & Audio
Max Resolution : 2880*1620
Frame Rate : Max:30fps; Self-Adaptive during network transmission
Video Compression : H.265 / H.264
H.265 Type : Main Profile
Video Bit Rate : Ultra-HD; Hi-Def; Standard. Adaptive bit rate.
Audio Bit Rate : Self-Adaptive
Network
Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n
Frequency Range : 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth : Supports 20MHz
Security : WPA-PSK/WPA2-PSK
Transmission Rate : 11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps
Wi-Fi Pairing : AP paring
Protocol : EZVIZ Cloud Proprietary Protocol
Interface Protocol : EZVIZ Cloud Proprietary Protocol
Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Functions
Smart Alarm : AI-Powered Human / Vehicle Shape Detection
Auto Tracking : Supports
Customized Alert Area : Supports
Two-way Talk : Supports
General Function : Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage : Supports microSD Card (Up to 512 GB)
Cloud Storage : Supports EZVIZ CloudPlay storage (Subscription required)
General
Operating Conditions : -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade : Weatherproof Design
Power Supply : DC 12V/1A
Dimensions : 100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)
Packaging Dimensions : 140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)
Weight : Net Weight: 539.7g; With Package: 823.6g For EU Standard Version
In the box
- H8c Pro 3K Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications
CE / UL / RoHS / WEEE / REACH
|
