SPESIFIKASI:
Model

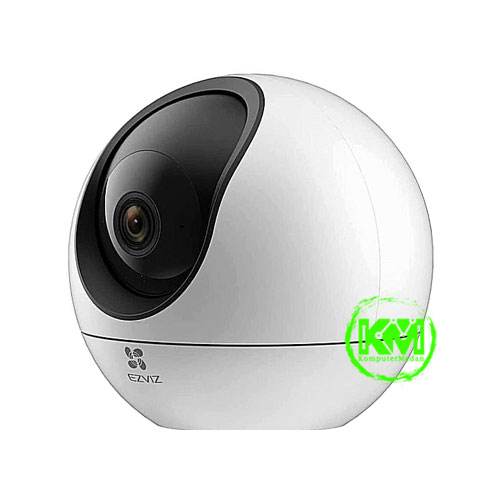

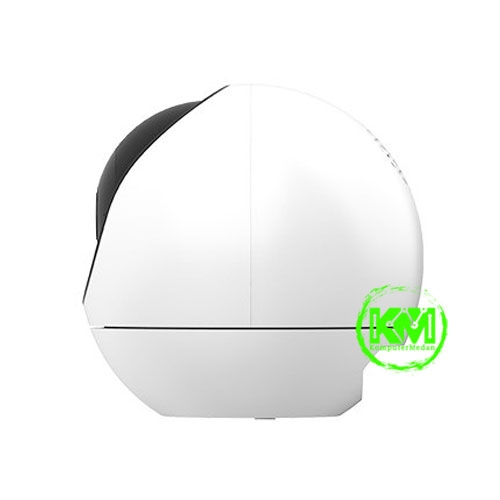

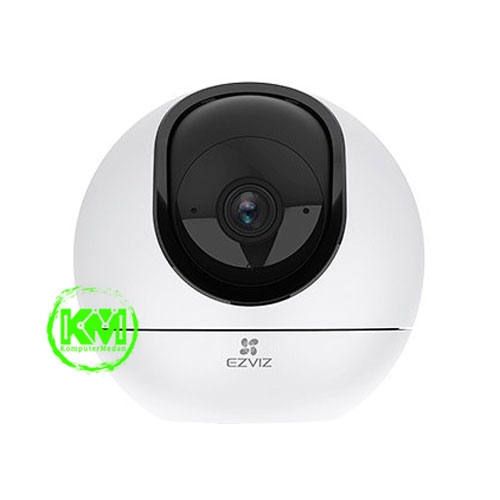

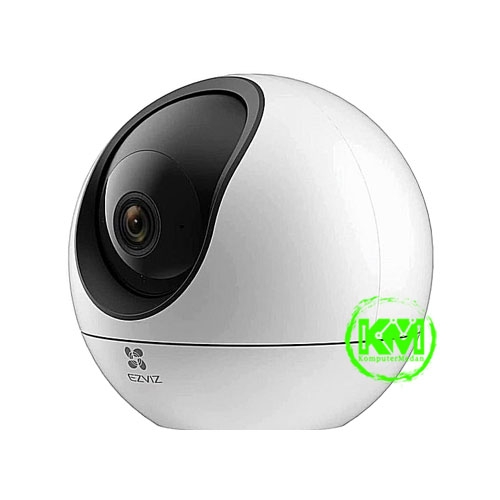

CS-H6-R100-1J5WF
Camera
Image Sensor : 1/2.7" Progressive Scan CMOS
Shutter Speed : Self-adaptive shutter
Lens : 4mm@ F1.6, view angle:87° (Horizontal), 53° (Vertical), 104°(Diagonal)
PT Angle Pan: 353° , Tilt: 133°
Minimum Illumination : 0.51Lux @(F1.6, AGC ON), 0 Lux with IR
Lens Mount : M12
Day & Night : IR-cut filter with auto-switching
DNR : 3D DNR
WDR : Digital WDR
BLC : Supports
Night Vision : 10 m
Video & Audio
Max. Resolution : 2880 × 1620
Frame Rate : Max:25fps; Self-Adaptive during network transmission
Video Compression : H.265 / H.264
Video Bit Rate : Ultra-HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate : Self-Adaptive
Max. Bitrate : 4 Mbps
Network
Wi-Fi Standard : IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range : 2.4G: 2400~2483.5 MHz 5G: 5170~5250 MHz，5735~5835 MHz
Channel Bandwidth : Supports 40 MHz
Security : 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate : 11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7; 11a 54Mbps, 11nHT20 MCS7, 11nHT40 MCS7
Wi-Fi Pairing : AP pairing
Protocol : EZVIZ Cloud Proprietary Protocol
Interface Protocol : EZVIZ Cloud Proprietary Protocol
Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Storage
Local Storage : Micro SD card slot (Max. 512G)
Cloud Storage : EZVIZ Cloud Storage
Function
Smart Alarm : AI-Powered Human Shape Detection / Pet Detection / Waving-Hand Detection / Voice Activity Detection
Customized Alert Area : Supports
Two-Way Talk : Supports ( Double Mic )
General Function : Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark
General
Operating Conditions : -10°C to 45°C ( 14°F to 113 °F ), humidity 95% or less (non-condensing)
Power Supply : DC 5V/2A（Type-C)
Power Consumption : Max. 8W
Product Dimensions : 115.5 × 116 × 160 mm (4.55 × 4.57 × 6.30 inch)
Packaging Dimensions : 116 × 116 × 164 mm (4.57 × 4.57 × 6.46 inch)
Weight (With Package) : 487 g (17.18 oz)
Net Weight : 255 g (8.99 oz)
In the box
- H6 Camera
- Base
- Power Cable
- Power Adapter
- Drill Template
- Screw Kit
- Quick Start Guide
- Regulatory Information
Certifications
CE / UKCA / UL / WEEE / RoHS / REACH
|
