SPESIFIKASI:
Model

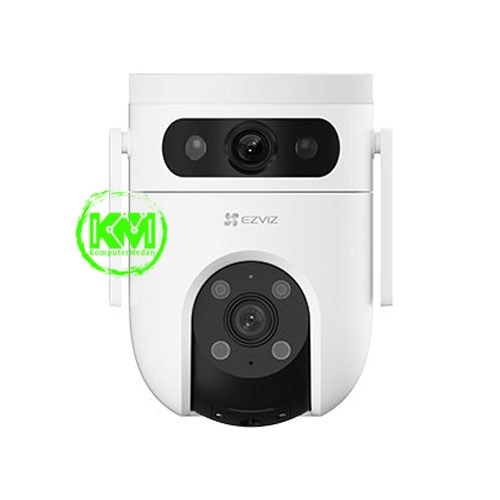

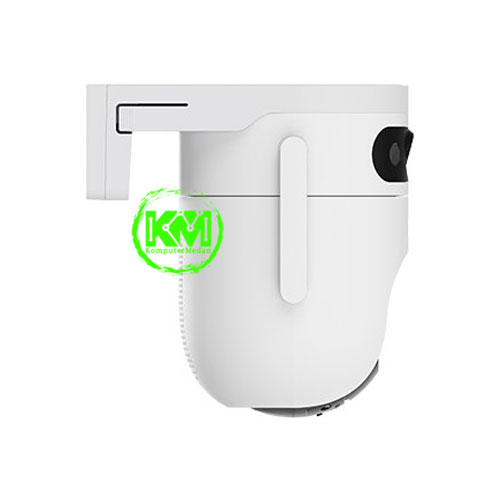

CS-H9c-R100-8H33WKFL
Camera
Image Sensor : 1/2.7" Progressive Scan CMOS
Shutter Speed : Self-adaptive shutter
Lens : Upper Camera: 2.8mm@ F1.6, viewing angle: Diagonal 130°, Horizontal 108°, Vertical 56° Bottom Camera: 6mm@F1.6, viewing angle: Diagonal 62°, Horizontal 55°, Vertical 28°
PT Angle : Pan: 350°, Tilt: 80°
Minimum Illumination : 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
Lens Mount : M12
Day & Night : IR-cut filter with auto-switching
DNR : 3D DNR
WDR : Digital WDR
Black & White Night : 30m / 98ft
Video & Audio
Max Resolution : 2304 × 1296
Frame Rate : Max:15fps; Self-Adaptive during network transmission
Video Compression : H.265 / H.264
H.265 Type : Main Profile
Video Bit Rate : Quad HD, Full HD, Hi Def, Standard. Adaptive bit rate.
Audio Bit Rate : Self-Adaptive
Network
Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n
Frequency Range : 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth : Supports 20MHz
Transmission Rate : 11b 11 Mbps, 11g 54 Mbps, 11n: 150 Mbps
Wi-Fi Pairing : AP paring
Protocol : EZVIZ cloud proprietary protocol
Interface Protocol : EZVIZ cloud proprietary protocol
Wired Network : RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Security : WPA-PSK/WPA2-PSK
Functions
Smart Alarm : AI-Powered Human Shape Detection / AI-Powered Vehicle Shape Detection / Motion Detection
Auto Tracking : Supports
Customized Alert Area : Supports
Two-way Talk : Supports
Preset Locations : Supports
General Function : Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage : Supports microSD Card (Up to 512 GB)
Cloud Storage : Supports EZVIZ CloudPlay storage
General
Operating Conditions : -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)
IP Grade : Weatherproof Design
Power Supply : DC 12V/1.5A
Power Consumption : MAX. 12W
Dimensions : 145 × 116 × 142mm (5.71 × 4.57 × 5.59 inch)
Packaging Dimensions : 150 × 150 × 194mm (5.90 × 5.90 × 7.64 inch)
Weight
Net Weight: 668 g
With Package: 960 g
In the box
- H9c Camera
- Drill Template
- Screw Kit
- Waterproof Kit
- Power Adapter
- Regulatory Information
- Quick Start Guide
Certifications
CE / WEEE / RoHS / REACH
|
