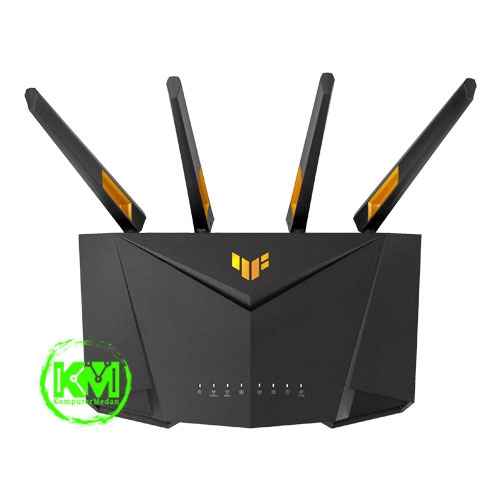

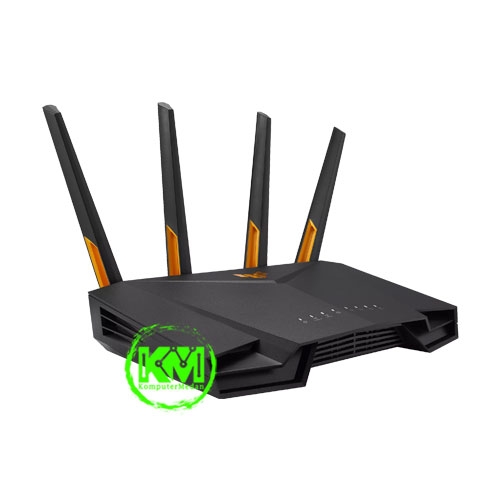

SPESIFIKASI:
Model

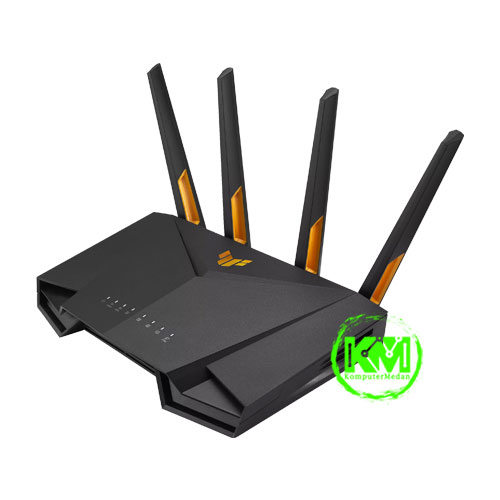

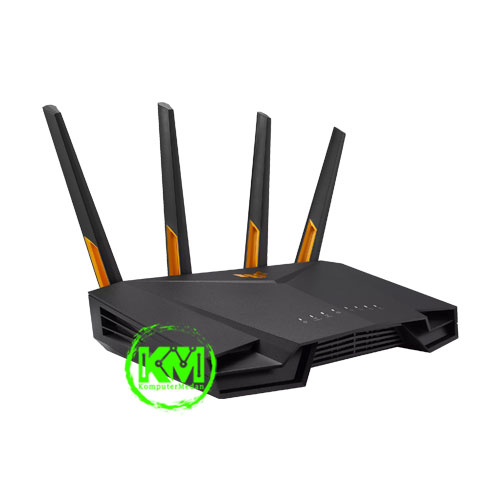

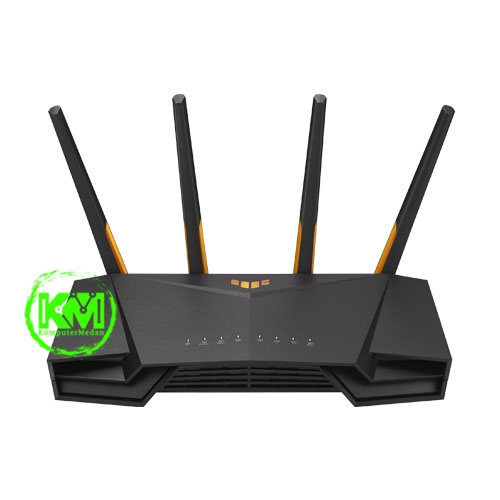

TUF Gaming AX4200
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX4200 ultimate AX performance: 574+3603 Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
802.11n : up to 450 Mbps
802.11n (256QAM) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 2600 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 2x2
5GHz 3x3
Processor
2.0 GHz quad-core processor
Memory
256 MB Flash
512 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4GHz / 5GHz
Operating Mode
Wireless router mode
Access point mode
Media bridge mode

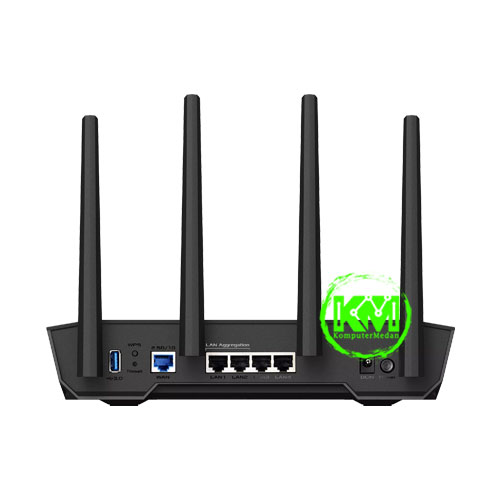

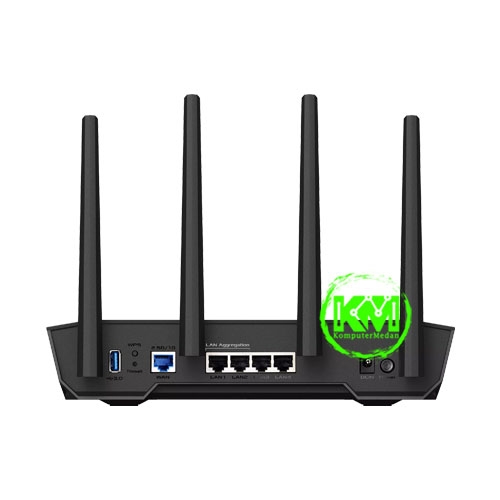

I/O Ports
RJ45 for 2.5 Gigabits BaseT for WAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1,
Buttons
WPS Button, Reset Button, Power Button
LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 4
WAN x 1
Power Supply
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2.5 A current
Package Content
-TUF Gaming AX4200 Dual Band WiFi 6 router
-RJ-45 cable
-Power adapter
-Quick Start Guide
-Warranty card
Product Weight (g)
547.4 g
Product Dimensions
256 x 178 x 186 mm
AiMesh
Yes
Game
Yes
Mobile Game Mode
OpenNAT (Game Profile)
Parental Control
Yes
Safe Browsing
Guest Network
Yes
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Security
AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
Yes
DNS-over-TLS
Security Scan
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
Yes
VPN
Yes
VPN Client Open VPN
VPN Client WireGuard
VPN Server Open VPN
VPN Server WireGuard
VPN Fusion
Traffic Control
Adaptive QoS
Yes
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
• Traffic Analysis Period : Daily, Weekly, Monthly
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Yes
WAN Aggregation
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN
Yes
LAN Link Aggregation
• Maximum Manually Assign IP Address Rule : 64
Wireless
Yes
• Maximum MAC Filters : 64
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Yes
Administration
Yes
New Device Connect Notification
Login Captcha
Connection Diagnosis
|
