SPESIFIKASI:
MANUFACTURER NUMBER

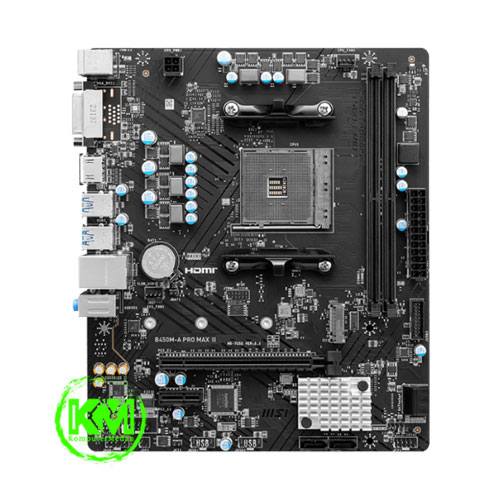

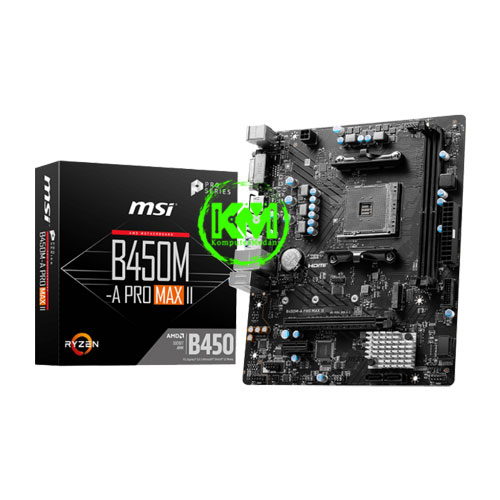

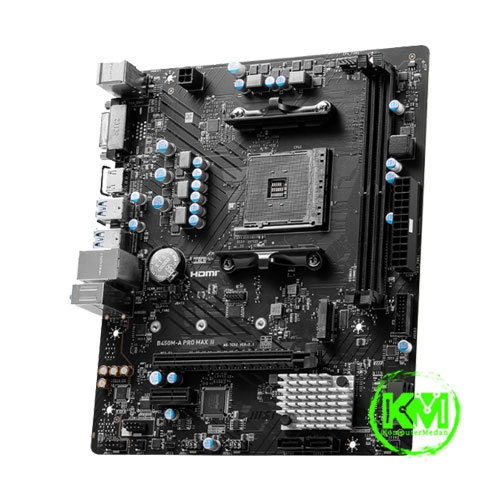

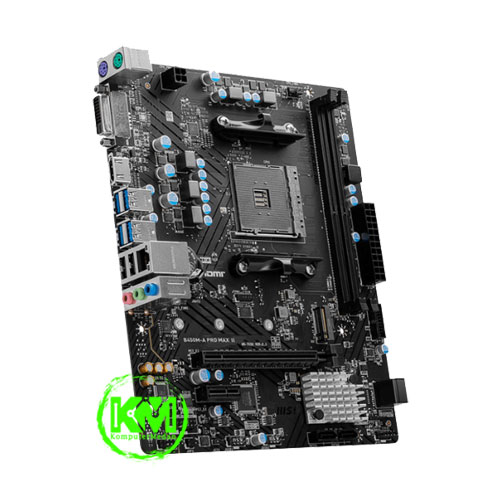

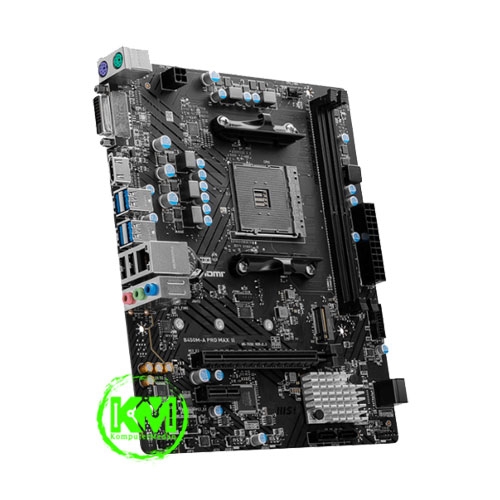

B450M-A PRO MAX II
CPU
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors for Socket AM4
CHIPSET
AMD® B450 Chipset
CPU SOCKET
AM4
FORM FACTOR
m-ATX
MEMORY
2x DDR4, Maximum Memory Capacity 64GB
LAN
Realtek® 8125 2.5Gbps LAN controller
STORAGE
1 x M.2 Gen3 x4 32Gbps slot | 4 x SATA 6Gbps ports
ONBOARD GRAPHICS
1 x HDMI™ (Support HDMITM 1.4, maximum resolution of 4K 24Hz)
1 x DVI (Support DVI-D, maximum resolution of 1920×1200 60Hz)
RAID
Supports RAID 0, RAID 1 and RAID 10

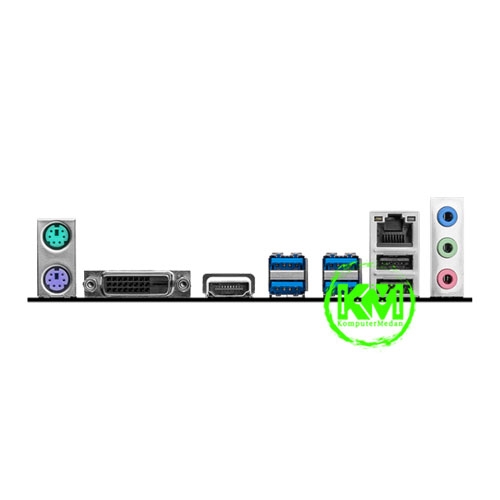

I/O (REAR) :
Keyboard/Mouse
DVI-D
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Audio connectors
USB 2.0
USB (FRONT) : 2 x USB 3.2 Gen1 Type A | 4 x USB 2.0
USB (REAR) 4 x USB 3.2 Gen1 Type A | 2 x USB 2.0
INTERNAL CONNECTORS
1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 3.2 Gen1 Type A ports
DIMENSIONS
9.29″ x 7.87″
MANUFACTURER WARRANTY
|
