Power Evolved

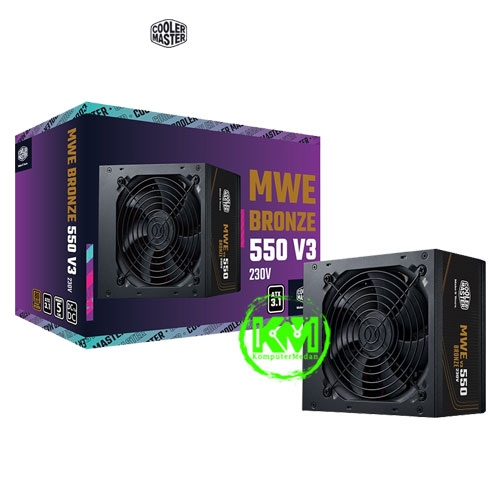

MWE Bronze 550 V3
ATX 3.1 support
High temperature resilience
Quiet HDB fan
80 Plus Bronze certified efficiency
Embossed cable
5-year warranty
SPESIFIKASI:
Form Factor : ATX
Watts : 550W
PFC : Active PFC
ErP 2014 Lot 3 : Yes
Operating Temperature : 0-40°C
Input Frequency : 50-60Hz

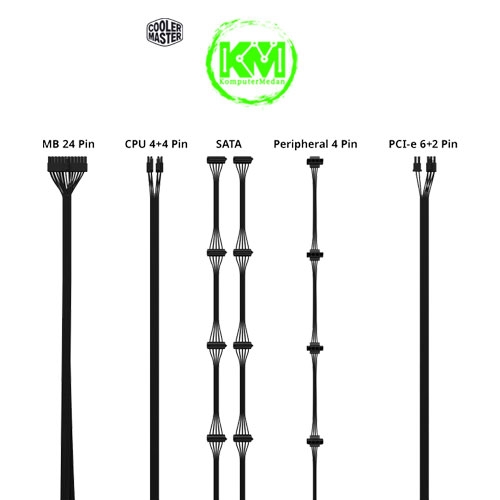

ATX 24 Pin Connectors : 1
Power Good Signal : 100 - 150 ms
Warranty : 5 Years
EPS 4+4 Pin Connectors : 2
Fan Size : 120mm
MTBF : >100,000 Hours
Category : 500 to 750W
80 PLUS Rating : 80 PLUS Bronze
Modular : Non Modular
Fan Bearing : HDB
80 Plus : Bronze
Input Voltage : 100-240V
PCI-e 6+2 Pin Connectors : 2
SATA Connectors : 6
Peripheral 4 Pin Connectors : 3
Protections : OVP
Series : MWE Bronze Series
Protections : OPP
Protections : SCP
Dimensions (L x W x H) : 140 x 150 x 86 mm / 5.5 x 5.9 x 3.4 inch
Protections : UVP
Protections : OTP
Hold Up Time : >16ms
Input Current : 8-4A
Regulatory : CCC
Regulatory : CE
ATX Version : ATX 12V Ver. 3.1
Efficiency : >85% @ Typical Load
Regulatory : RCM
Regulatory : EAC
Regulatory : cTUVus
Regulatory : FCC
Regulatory : BSMI
Regulatory : TUV
Regulatory : UKCA
Regulatory : RoHS2.0 / BIS
Regulatory : KC (based on region's request.)

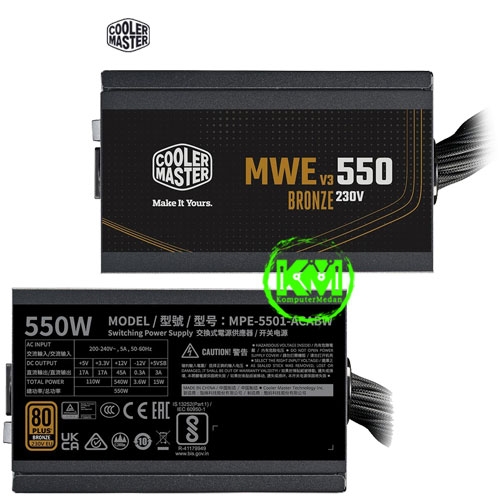

Model : MPE-5501-ACAAW-3B
|
