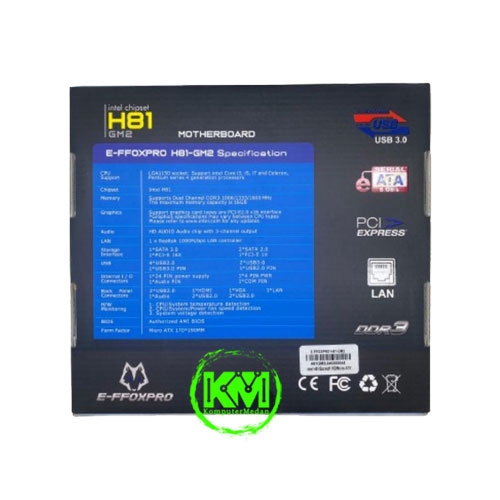

SPESIFIKASI:

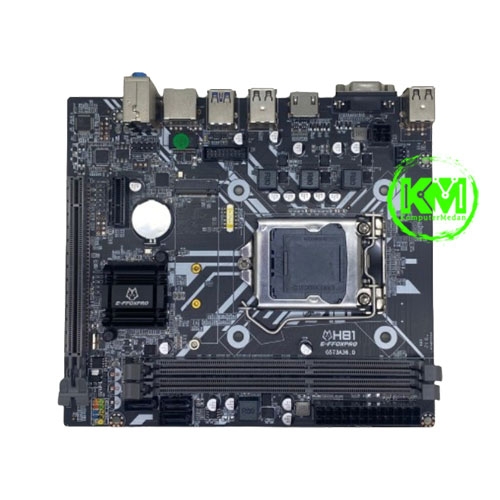

CPU Support
LGA1150
Socket
Support Intel Core i3,i5,i7 and Celeron, Pentium series 4 generation processors
Chipset
Intel H81
Memory
Supports Dual Channel DDR3 1066/1333/1600MHz The maximum memory capacity is 16GB
Graphics
Support graphics card types are PCI-E2.0 x16 interface *Graphics specifications may vary between CPU types Please refer to www.intel.com for any updates
Audio
HD AUDIO Audio chip with 3-channel output
LAN
1 x Realtek 1000M/bps LAN controller
Storage Interface
- 1x SATA 3.0
- 1x PCI-E 16X
- 2x SATA 2.0
- 1x PCI-E 1X
USB
- 4x USB2.0
- 1x USB3.0 PIN
- 2x USB3.0
- 1x USB2.0 PIN
Internal I/O Connectors
- 1x 24 PIN Power Supply
- 1x Audio PIN
- 1x 4 PIN PWR
- 1x COM PIN

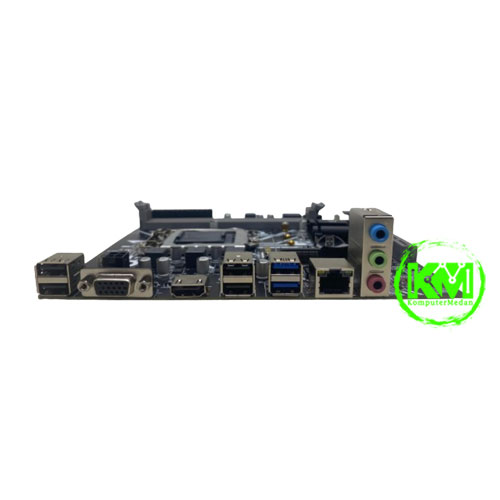

Back Panel Connectors
- 2x USB 2.0
- 1x Audio
- 1x HDMI
- 2x USB 2.0
- 1x VGA
- 2x USB 3.0
- 1x LAN
H/W Monitoring
CPU/System temperature detection
CPU/System/Power fan speed detection
System voltage detection
BIOS
Authorized AMI BIOS
Form Factor
|
