SPESIFIKASI:

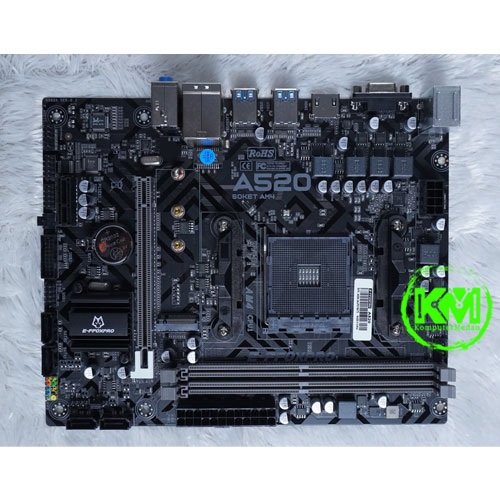

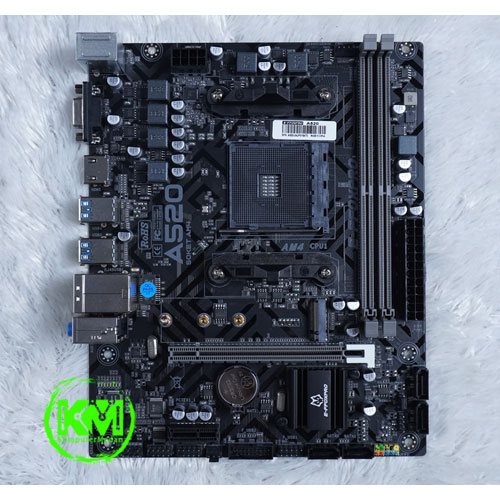

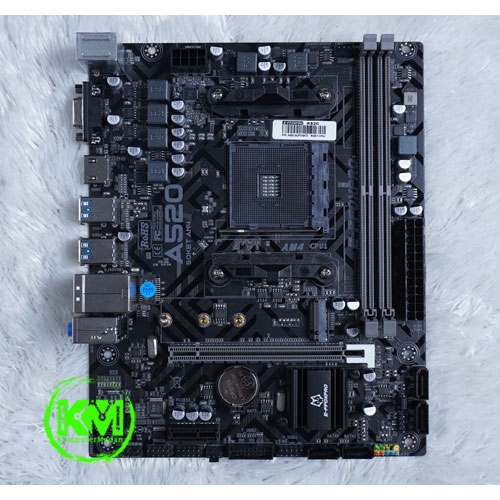

EFFOXPRO A520 HMV AM4 DDR4 (AMD)
CPU
Supports AMD Socket AM4 AMD RYZEN
Chipset
AMD A520
Memory
- 2x 288-pin DDR4 SDRAM slots
- Memory up to 32GB
- Supports dual channel DDR4
3200 / 2933 / 2800 / 2666 / 2400 / 2133Mhz

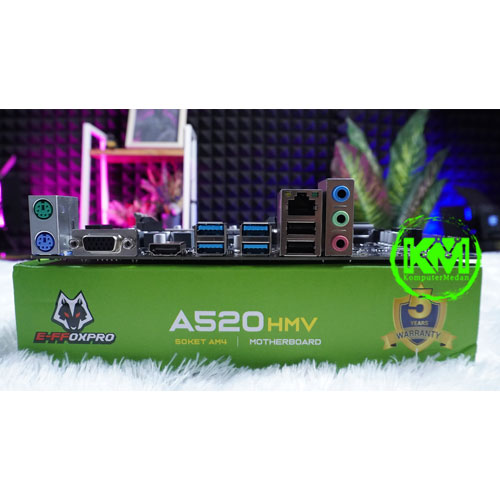

I/O Interface
- 1x PS/2 keyboard port, 1x PS/2 mouse port
- 2x USB, compatible with USB2.0/ 1.1
- 4x USB, compatible with USB3.0
- 1x VGA port
- 1x HDMI port
- 1x RJ45 port
- 1x 3-in-1 Audio port (line in/line out/MIC in)
Onboard Interface
- 1x 24-pin ATX Power connector
- 1x 8-pin ATX 12V power connector
- 2x USB2.0 connector
- 2x USB3.0 connector
- 1x F_AUDIO connector
- 1x F_PANEL connector
- 1x SPEAKER connector
- 1x FAN connector
- 4x serial SATA/6GB/s connector port
- 1x LPC_DEBUG connector
Integrated Sound
- with 6-channel HD Audio Codec onboard
- provides front audio interface; provides front stereo mic interface
Integrated LAN
with 10/100/1000Mbps LAN Onboard
Expansion Slot
- 1x PCI Express x16 slot
- 1x PCI Express x1 slot
- 1x NVME-M.2 connector
Dimension
Micro-ATX architecture (17x22cm)
|
