SPESIFIKASI:
PROCESSOR
Supports 8th Gen Intel® Core™ processors, Pentium® Gold and Celeron® processors for Socket LGA1151
CHIPSET
Intel® H310 Chipset
MEMORY
2 x DDR4 memory slots, support up to 32GB
Supports DDR4 2666/ 2400/ 2133 MHz
Dual channel memory architecture
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
SLOTS
1 x PCIe 3.0 x16 slot
2 x PCIe 3.0 x1 slotss
ONBOARD GRAPHICS
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz1
1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1
1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1
Supports up to 2 displays simultaneously
STORAGE
Intel® H310 Chipset
4 x SATA 6Gb/s ports
1 x M.2 slot (Key M)
Support up to PCIe 2.0 x4 and SATA 6Gb/s
Supports 2242/ 2260 /2280 storage devices
USB
Intel® H310 Chipset
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
AUDIO
Realtek® ALC887 Codec
7.1-Channel High Definition Audio
LAN
1 x Intel I219-V Gigabit LAN controller
INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
1 x Serial port connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper

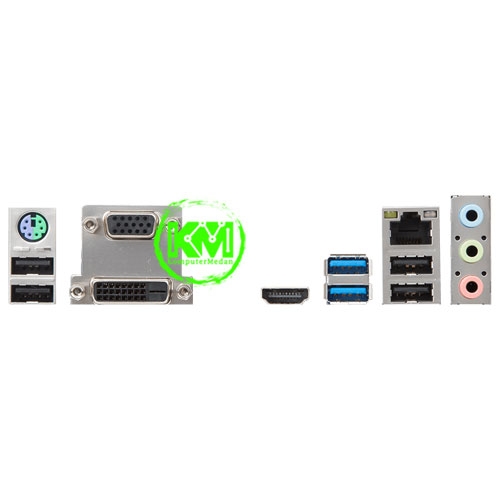

BACK PANEL PORTS
PS/2 Combo Port
VGA Port
HDMI™ Port
USB 3.1 Gen1
LAN Port
HD Audio Connectors
USB 2.0 Port
DVI-D Port
USB 2.0 Port
MSI H310M PRO-M2 back panel ports
DIMENSIONS
9.1 in. x 7.3 in. (23.0 cm x 18.5 cm)
m-ATX Form Factor
MOUNTING
|
