SPESIFIKASI:

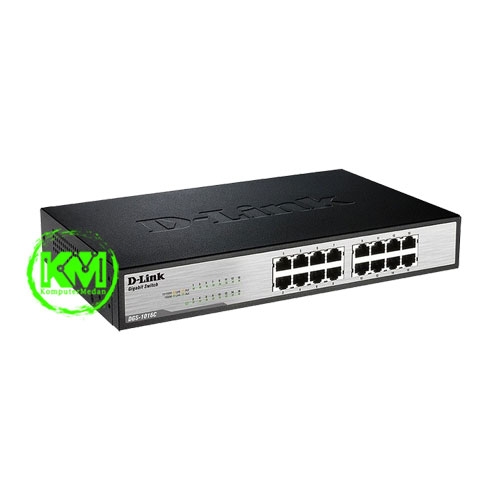

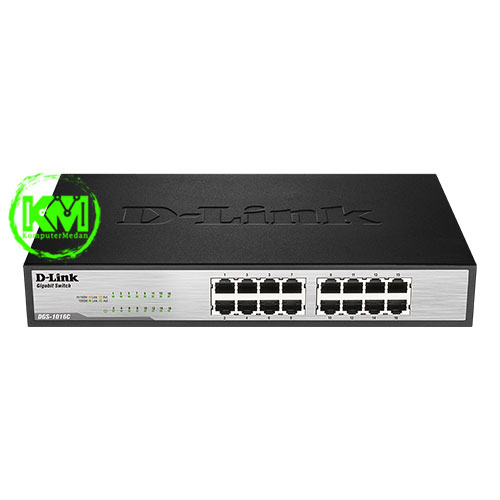

16-Port 10/100/1000 Mbps Unmanaged Switch
The DGS-1016C Unmanaged Switch is economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Features:
~ 16x 10/100/1000 Mbps ports
Advanced Features:
~ Auto MDI/MDIX crossover for all ports
~ Secure store-and-forward switching scheme
~ Full/half-duplex for Ethernet/Fast Ethernet speeds
~ Supports 9216 byte jumbo frames
~ Back pressure at half-duplex operation
~ Wire-speed reception and transmission
~ Store and-Forward switching method
~ Auto-negotiation for each port
~ QoS (8 queues, strict mode)
~ Switching Capacity 32 Gbps switching fabric
~ RAM Buffer 256 KB per device
~ MAC Address Table Size 8000
Data Transfer Rates:
~ Ethernet : 10Mbps (half duplex), 20Mbps (full duplex)
~ Fast Ethernet : 100Mbps (half duplex), 200Mbps (full duplex)
~ Gigabit Ethernet : 2000Mbps (full duplex)
~ Auto MDI/MDIX adjustment for all ports

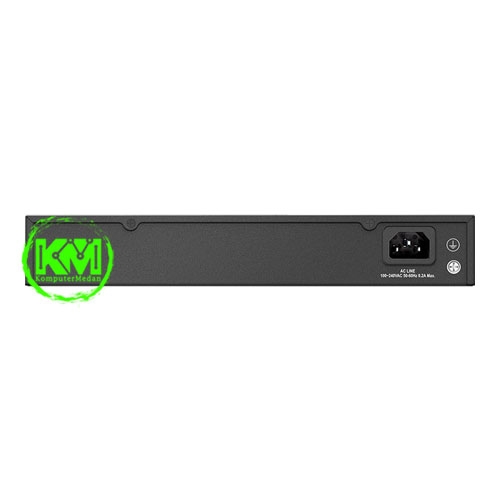

~ Power : 100 to 240 V AC
~ Dimensions : 282.2 x 178 x 44.5 mm
~ Temperature Operating : 0 to 40C
|
