Model

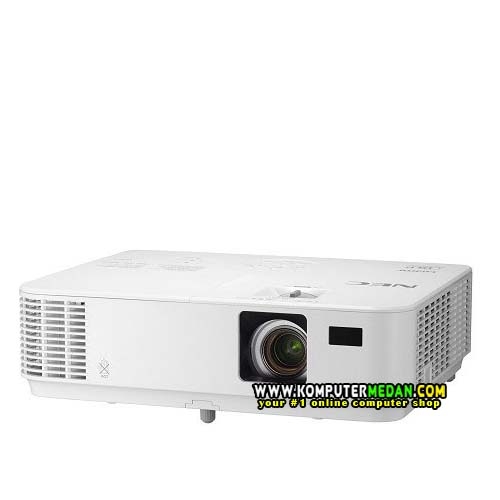

NEC NP-VE303XG Portable Projector

DLP Chip

Reflection by single DMD chip

Resolution

1,024 × 768 ( XGA )

Lens

Manual zoom (×1.1 ) / Manual focus,
F = 2.41 - 2.55, f = 21.8 - 24.0 mm,
Throw ratio = 1.95 - 2.15

Light source ( Lamp)

ECO mode 160 W
ECO mode off 195 W

Lamp life

ECO mode 6,000 H
ECO mode off 4,500 H

Image size

30 to 300 inches

Light output

ECO mode off 3,000 ANSI lumens
ECO mode Approx. 85% of ECO off

Quietness ( ECO / ECO mode off)

30 dB / 34 dB

Contrast ratio ( white / black )

10,000 : 1 with dynamic contrast on

Maximum resolution

Up to 1080p ( 1,920 × 1,080 )

Synchronization range

Horizontal 15 kHz to 100 kHz ( RGB: 24 kHz or over)
Vertical 50 Hz to 120 Hz ( 24 Hz: Blu-ray 24P)

Vertical keystone correction

Manual: ± Max 40 degrees

Input terminals

Computer Mini D-sub 15 pin × 1
Video RCA × 1
HDMI HDMI × 1
Audio Stereo mini jack × 1

Control terminals

D-sub 9 pin × 1

USB port

Service × 1

Built-in speaker

2 W monaural

Usage environment

Operational temperature 5°C to 40°C, up to 80% humidity ( no condensation)
Storage temperature -10°C to 50°C, up to 80% humidity ( no condensation)

Power requirements

100 to 240 V AC, 50 Hz / 60 Hz

Input current

2.5 A to 1.1 A

Power consumption ( 100 to 130 V AC / 200 to 240 V AC)

ECO mode off 237 W / 232 W
ECO mode 198 W / 192 W
Standby ( Normal) 0.23 W / 0.33 W

Dimensions

(W) × (H) × (D) 324 × 101 × 250 mm
324 × 88 × 250 mm (not including protrusions)

Weight

2.6kg
