STOCK: READY STOCK

Overview:

Power Method
DC 9V=0.6A
Passive PoE
Passive PoE power supply
Up to 40 meters Passive PoE is supported(cat5e or up)
Hardware Deployment
Desktop/Wall Mount
Video user capacity
5
wireless users capacity
20+
Diagostic
Wireless site survey
Ping
Traceroute
Network Service
Schedule Reboot
Http/Https
Managed by AC
AC500
Reception Sensitivity
b mode： 1M -89dBm@8%
11M -87dBm@8% PER
g mode： 54M -74dBm@8% PER
n mode： 72.2M -72dBm@8% PER
150M -70dBm@8% PER
LED
SYS,WPS,Bridge,WiFi,LAN1,LAN2
Frequency
2.4GHz-2.483GHz
LAN Settings
Static IP
Dynamic IP
DHCP Server
DHCP Server
Clients list
Wireless Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Operating Mode
Access Point
Universal Repeater
Station(Client)
WISP (Client+Router)
Client+AP
Wireless Function
8 SSID
Enable/Disable Wireless Radio
Broadcast SSID
SSID Hidden automatically when exceed client limit
Client limit for SSID
Transmission output power
AP isolation
RSSI threshold for wireless clients
WMM capable
APSD capable
Access control based mac address
Wireless Client list
VLAN for multi SSID
Wrieless Security
64/128 WEP WPA-PSK WPA2-PSK WPA&WPA2-PSK WPA WPA2
VPN Pass-through
PPTP L2TP
Management Tool
Reboot
Restore to factory default
System Log
Firmware update
Time&Date Setting
Backup/Restore Configuration
Username Managerment
Package Content

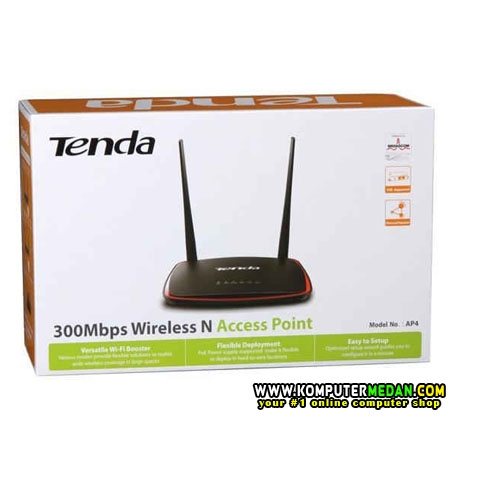

300Mbps Wireless N Access Point AP4
1*PoE Injector
1*Quick Installation Guide
1*Ethernet cable
1*Power Adapter
2*Screws
2*Plastic Bolt
Temperature
Operating Temperature:-10℃~45℃
Storage Temperature :-30℃~70℃
Humidity
Storage Humidity:5%~90% non-condensing
Operating Humidity:10%~90% non-condensing
Default Settings
IP Address: 192.168.0.254 Login Username:admin Login Password:admin
Certification
FCC/CE/Rohs/VoC
Button
1*Reset 1*Range Extender
Antenna
2*5dBi Detachable Omni Directional (RP-SMA)
Interface
2 * 10/100M Ethernet Port (RJ45)
Standard&Protocol
IEEE 802.11n/g/b
Dimension
148*146.2*31.5mm

NB: Untuk informasi lebih lanjut, click here

Garansi: 1 Tahun

NB: Harga dapat berubah sewaktu-waktu

Syarat Garansi:
- Garansi berlaku untuk kerusakan internal (kerusakan pabrik)
- Fisik tidak rusak / tidak cacat fisik
- Kondisi barang masih bagus
- Segel tidak rusak & sertakan packingan
- Baca Syarat & Ketentuan
