SPESIFIKASI:

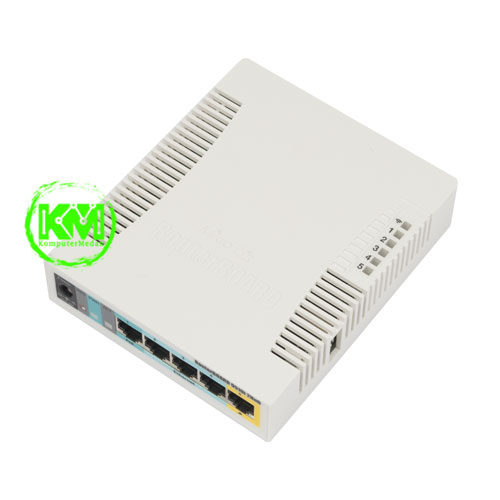

Product code : RB951Ui-2HnD
Architecture : MIPSBE
CPU : AR9344
CPU core count : 1
CPU nominal frequency : 600 MHz
Dimensions : 113x138x29mm
RouterOS license : 4
Operating System : RouterOS
Size of RAM : 128 MB
Storage size : 128 MB
Storage type : NAND
MTBF : Approximately 100'000 hours at 25C
Tested ambient temperature : -20C +60C
Wireless capabilities
Wireless 2.4 GHz Max data rate : 300 Mbit/s
Wireless 2.4 GHz number of chains : 2
Wireless 2.4 GHz standards : 802.11b/g/n
Antenna gain dBi for 2.4 GHz : 2.5
Wireless 2.4 GHz chip model : AR9344
Wireless 2.4 GHz generation : Wi-Fi 4
Ethernet
10/100 Ethernet ports : 5
Peripherals
Number of USB ports : 1
USB Power Rese : Yes
USB slot type : USB type A
Max USB current (A) : 1
Powering
Number of DC inputs : 2 (PoE-IN, DC jack)
DC jack input Voltage : 8-30 V
Max power consumption : 24 W
Max power consumption without attachments : 7 W
Cooling type : Passive
PoE in : Passive PoE
PoE in input Voltage : 8-30 V
PoE-out
PoE-out ports : Ether5
PoE out : Passive PoE
Max out per port output (input 18-30 V) : 500 mA
Max total out (A) : 500 mA
Certification & Approvals
Certification : CE, FCC, IC, EAC, ROHS
IP : IP20
Other
Beeper : Yes
Wireless specifications
2.4 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 30 -96
54MBit/s 25 -80
MCS0 30 -96
MCS7 23 -78
|
