spesification

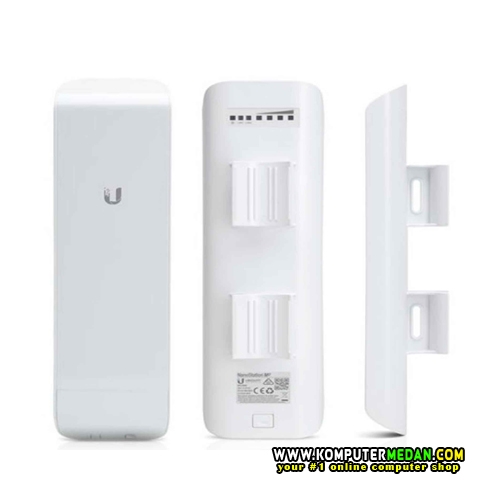

Overview Of Ubiquiti Nanostation M5 5GHz NSM5 NS-M5 Nano Station M5

Processor Specs Atheros MIPS 24KC, 400MHz
Memory Information 32MB SDRAM, 8MB Flash
Networking Interface 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet
Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance YES
Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Kit Pole Mounting Kit included
Power Method Passive Power over Ethernet (pairs 4, 5+; 7, 8 return)
Operating Temperature -30C to 75C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4
Operating Frequency Summary (MHz) 5470-5825
OUTPUT POWER: 27 dBm
Gain 14.6 - 16.1 dBi
Cross-pol Isolation 22 dB minimum
Max VSWR 1.6:1
Beamwidth 43 deg. (H-pol) / 41 deg (V-pol) / 15 deg (Elevation)

Garansi: 1 Tahun

Syarat Garansi:
- Garansi berlaku untuk kerusakan internal (kerusakan pabrik)
- Fisik tidak rusak / tidak cacat fisik
- Kondisi barang masih bagus
- Segel tidak rusak & Sertakan packingan
- Baca Syarat & Ketentuan
