SPESIFIKASI:
Model

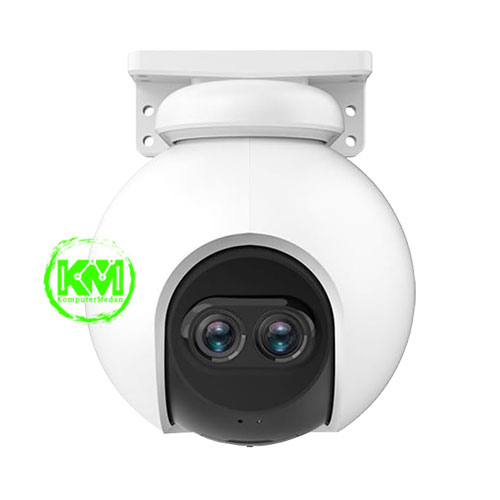

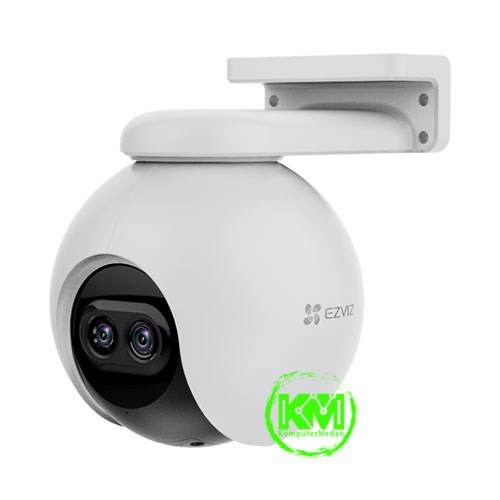

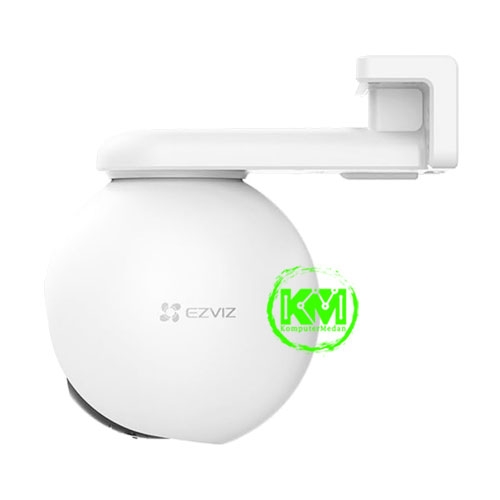

CS-C8PF (1080P)
Camera
Image sensor : Dual-1/2.7" Progressive Scan CMOS
Shutter Speed : Self-adaptive shutter
Lens : 2.8 mm @ F1.6 + 12 mm @ F1.6
PT Angle Pan: 340°, Tilt: 80°
Minimum Illumination : 0.05Lux @ (F1.6 AGC ON), 0 Lux with IR
Lens Mount : M12
Day & Night : IR-cut filter with auto switching
DNR : 3D DNR
WDR : Digital WDR
BLC : Supports
Black & White Night : 30 m/ 98 ft
Video & Audio
Max Resolution : 1920 × 1080
Frame Rate : Max. 15fps, self-adaptive during network transmission
Video Compression : H.265 / H.264
H.265 Type : Main profile
Video Bit Rate : Full HD; HD; Standard. Adaptive bit rate.
Audio Bit Rate : Self-Adaptive
Max. Bitrate : 2Mbps
Network
Wi-Fi Standard : IEEE802.11b, 802.11g, 802.11n
Frequency Range : 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth : Supports 20MHz
Security : 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission Rate : 11b: 11Mbps,11g :54Mbps,11n :72Mbps
Wi-Fi Pairing : AP pairing
Protocol : EZVIZ Cloud Proprietary Protocol
Interface Protocol : EZVIZ Cloud Proprietary Protocol
Wired Network : RJ45 × 1(10M/100M Adaptive Ethernet Port)
Function
Smart Alarm : AI-powered Human Shape Detection
Customized Alert Area : Supports
Audio : Supports mic
General Function : Anti-flicker, dual-stream, heart beat, password protection, watermark
Storage
Local Storage : MicroSD card slot (Max. 512GB)
Cloud Storage : EZVIZ cloud storage
General
Operating Conditions : -30ºC to 60ºC (14°F to 113°F), humidity 95% or less (non-condensing)
IP Grade : Weatherproof design
Power Supply : DC 12V / 1A
Power Consumption : MAX. 12W

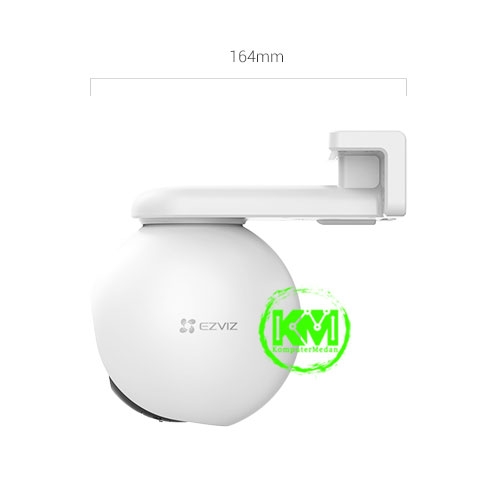

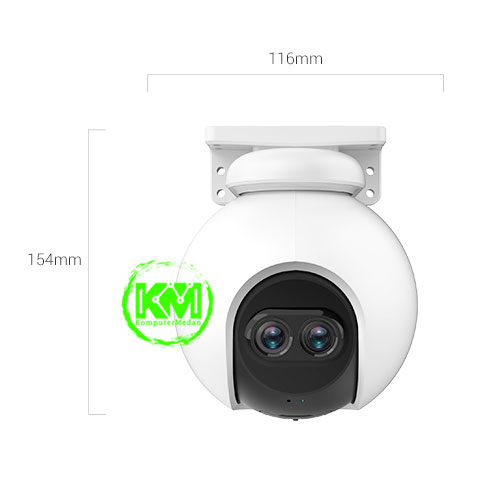

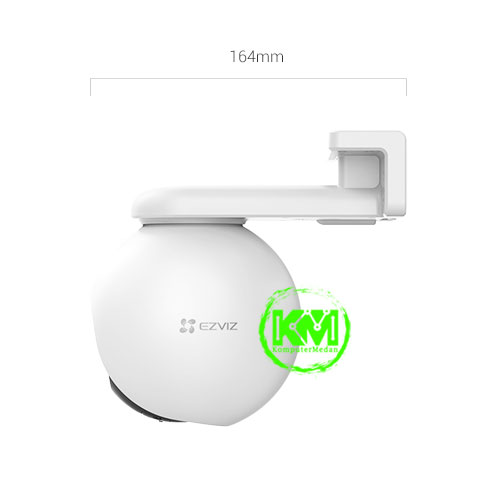

Dimensions : 154 × 116 × 164 mm (6.06 × 4.57 × 6.46 inch)
Packaging Dimensions : 197 × 185 × 205 mm (7.76 × 7.28 × 8.07 inch)
Weight : Product: 578 g (20.39 oz)
With package : 938 g (33.09 oz)
In the box
- C8PF Camera
- 1.5-Meter Power Adapter
- Screw Kit
- Waterproof Kit
- Drill Template
- Regulatory Information
- Quick Start Guide
Certifications
UL / FCC / CE / WEEE / REACH/ ROHS
|
