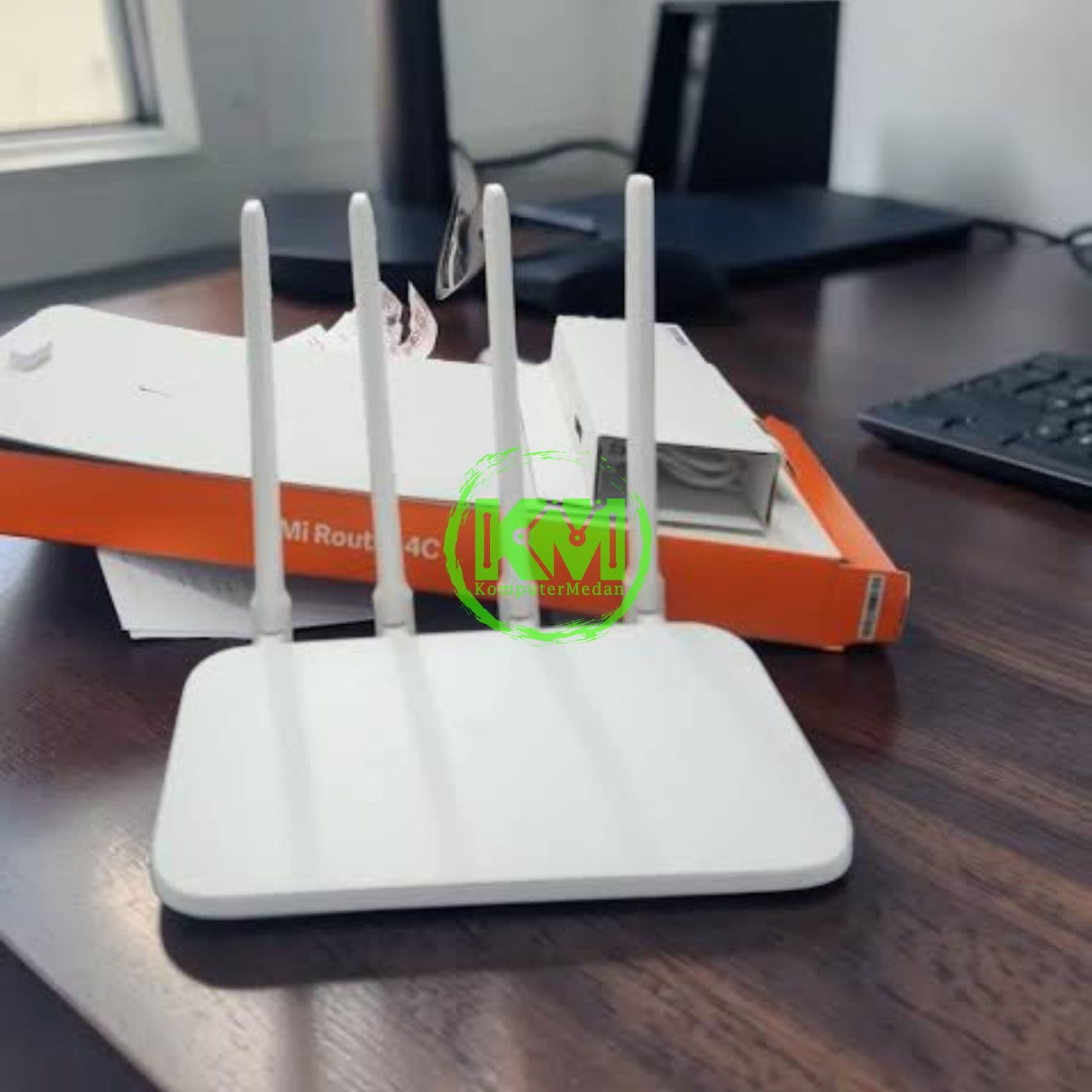

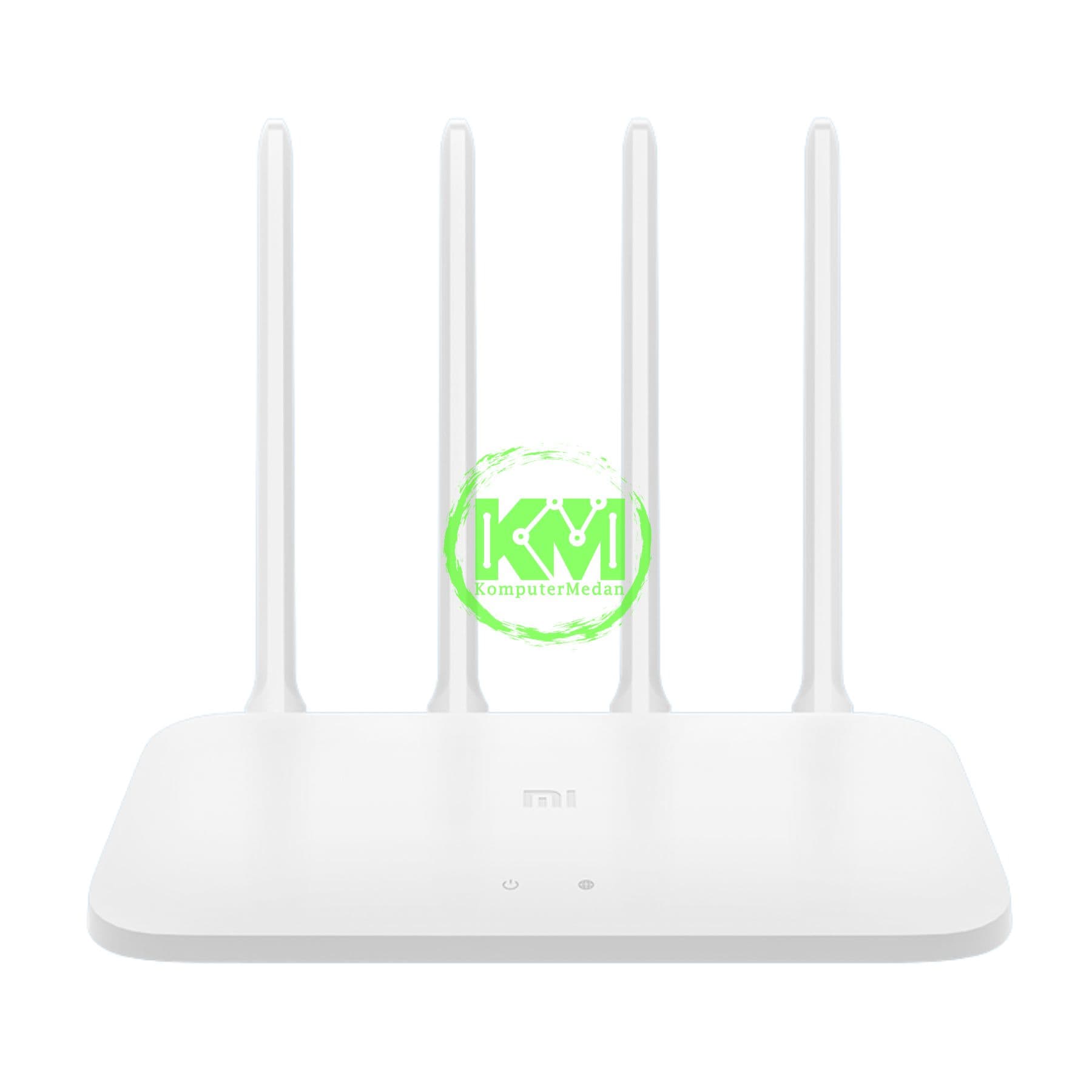

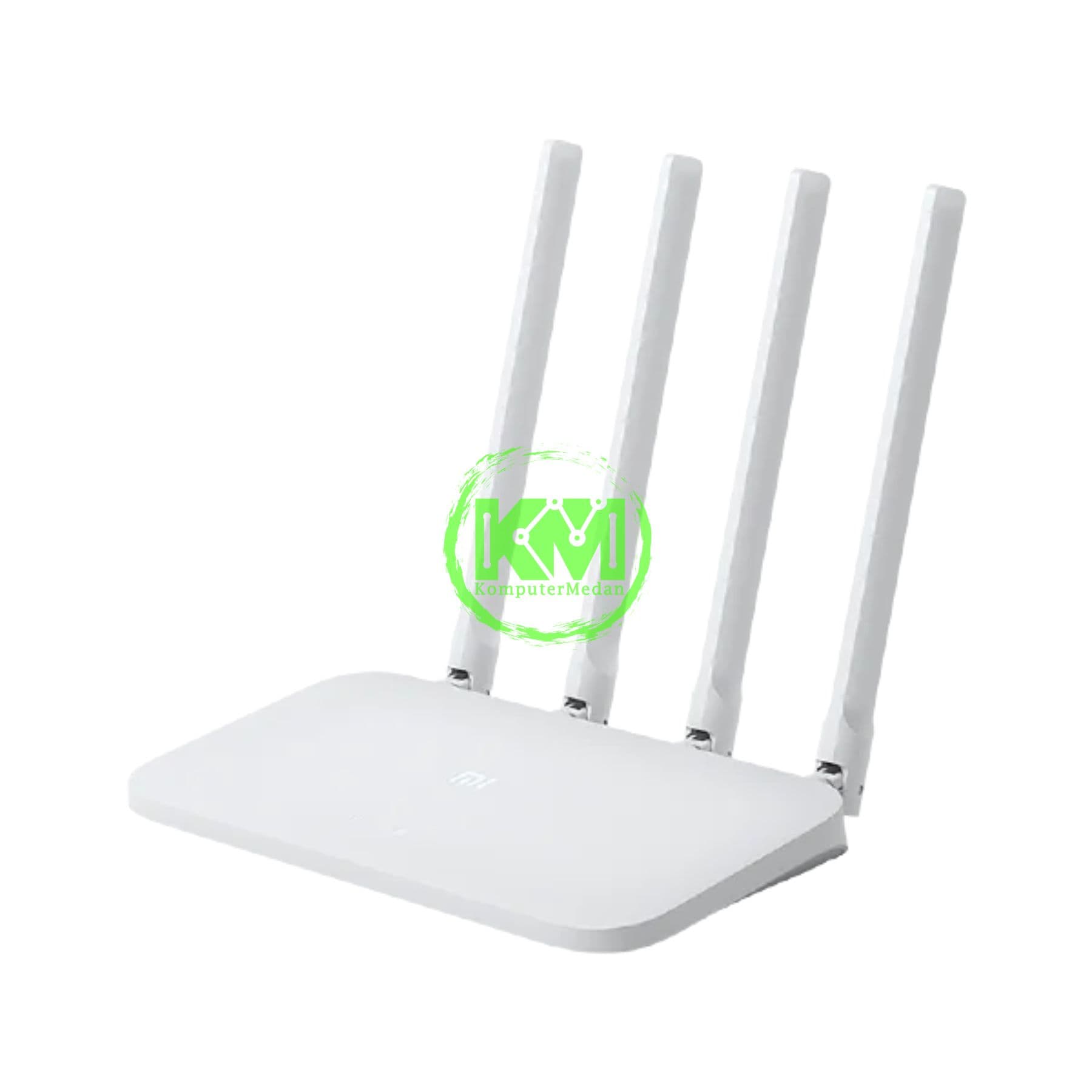

MI ROUTER 4C (WHITE)

MI ROUTER 4C (WHITE) SPESIFIKASI: PROCESSOR MT7628DA INTERNAL MEMORY 64MB DDR2 2.4GHz Integrated LNA and PA 5GHz Not supported HEAT DISSIPATION Natural heat dissipation OPERATING HUMIDITY 10%–90% RH (no condensation) STORAGE TEMPERATURE -40–70°C PROTOCOL STANDARDS IEEE 802.11b/g/n IEEE 802.3/3u ROM 16MB NorFlash 2.4GHz Wi-Fi 2x2 (supports IEEE 802.11N protocol, maximum possible speed of 300Mbps) 5GHz Wi-Fi Not supported ANTENNAS 4x external single band antennas OPERATING TEMPERATURE 0–40°C STORAGE HUMIDITY 5%–90% RH (no condensation) WARRANTY INFORMATION 1 year whole device warranty CERTIFICATION STANDARDS GB9254-2008 YD/T993-1998 GB4943.1-2011 HARDWARE INTERFACE -2x 10/100M self-adaptive LAN ports (Auto MDI/MDIX) -1x system factory settings reset button -1x orange/blue/purple system status light; one blue external network interface status light -1x 10/100M self-adaptive WAN port (Auto MDI/MDIX) -1x power input interface SINGLE BAND 2.4GHz MODULATION 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps) 11g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps) 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Rate set: MCS0 to MCS15 RECEPTION SENSITIVITY 11Mbps: ≤ -85dBm, 54Mbps: ≤ -72dBm, HT20 MCS7: ≤ -69dBm, HT40 MCS7: ≤ -66dBm OPERATING SYSTEM Mi Wi-Fi ROM intelligent router operating system based on a highly customized version of OpenWRT that supports web, Android, and iOS router management software WIRELESS SECURITY WPA-PSK/WPA2-PSK encryption, wireless access control (blacklist and whitelist), SSID hiding MANAGEMENT APPLICATION Supports web, iOS, and Android PACKAGE CONTENTS -User manual -Power adapter -Mi Router 4C
